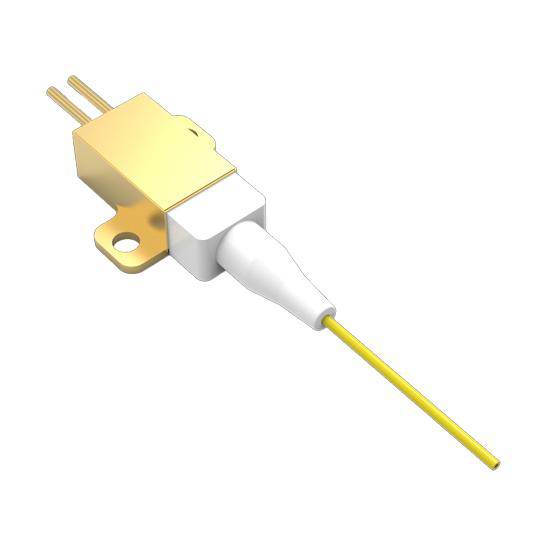

793nm 8W Fiber-Coupled Diode Laser K793DB2RN-8.000WN0N-10522F20EFF
The K793DB2RN-8.000WN0N-10522F20EFF is a standard 793nm 8W fiber-coupled semiconductor laser diode developed by BWT. It delivers a minimum of 8W optical output power through a 105μm core, 0.22NA multimode optical fiber with a 2.0m length and FC bare ferrule connector. Featuring a precisely controlled center wavelength of 793±3nm, a typical spectral width of 3nm (FWHM), up to 45% electro-optical conversion efficiency, and a built-in anti-reflection function for the 1900-2100nm band, this laser diode provides stable, efficient and reliable performance for fiber laser pumping and scientific research applications.
Save to Favorites
Overview
Specifications

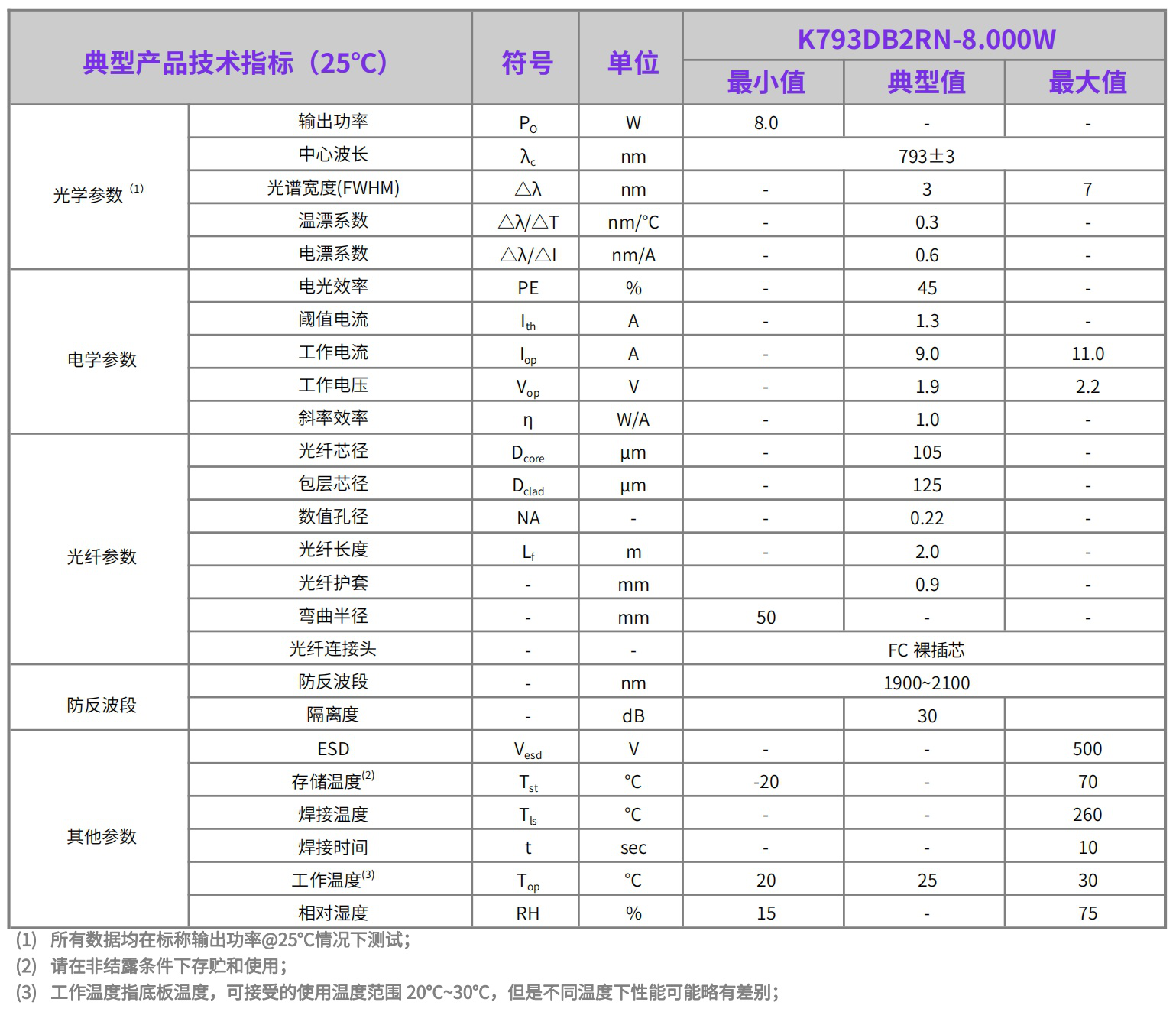

| Parameter | Value |
|---|---|
| Wavelength Temperature Coefficient | 0.3nm/℃(Typ.) |
| Wavelength Current Coefficient | 0.6nm/A(Typ.) |
| Electro-Optical Conversion Efficiency | 45%(Typ.) |
| Threshold Current | 1.3A(Typ.) |
| Slope Efficiency | 1.0W/A(Typ.) |
| Fiber Core Diameter | 105μm |
| Fiber Length | 2.0m |
| Fiber Jacket Diameter | 0.9mm |
| Bend Radius | ≥50mm |
| Fiber Connector | FC bare ferrule |
| Anti-reflection Band | 1900~2100nm |
| ESD | ≤500V |
| Soldering Temperature | ≤260℃ |
| Soldering Time | ≤10s |
| Operating Temperature | 20℃~30℃ |
| Pin 1 | Laser (+) |
| Pin 2 | Laser (-) |

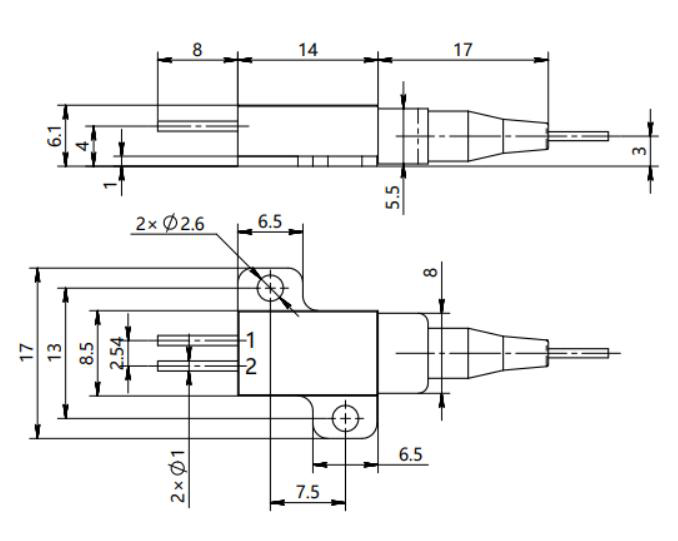

| Package Dimensions | 39×17×16.1mm(L×W×H) |
| Mounting Holes | 2×Φ2.6mm |
| Pin Diameter | 2×Φ1mm |
