793nm 50W Fiber Coupled Diode Laser K793DA5RN-50.00WN0N-10522F20EFF

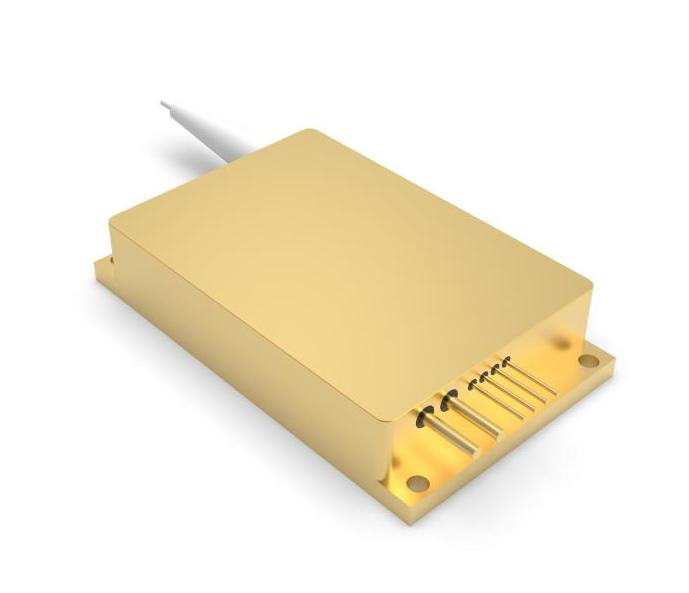

The K793DA5RN-50.00WN0N-10522F20EFF is a standard 793nm 50W fiber-coupled semiconductor (diode) laser module from BWT. It delivers a minimum of 50W output power through a 105μm core / 125μm cladding multimode fiber with 0.22NA, 2m length and an FC bare ferrule connector. The module features a center wavelength of 793±3nm, a typical spectral width of 3nm (FWHM), a typical electro-optical efficiency of 45%, and an integrated anti-reflection function for the 1900~2100nm band with ≥30dB isolation to protect the chip from back-reflected light. Optional thermistor and monitor photodiode pins are available in the compact gold-plated package (approx. 80×48×16mm). It is mainly used as a pump source for fiber lasers and in scientific research.
Save to Favorites
Overview
Specifications

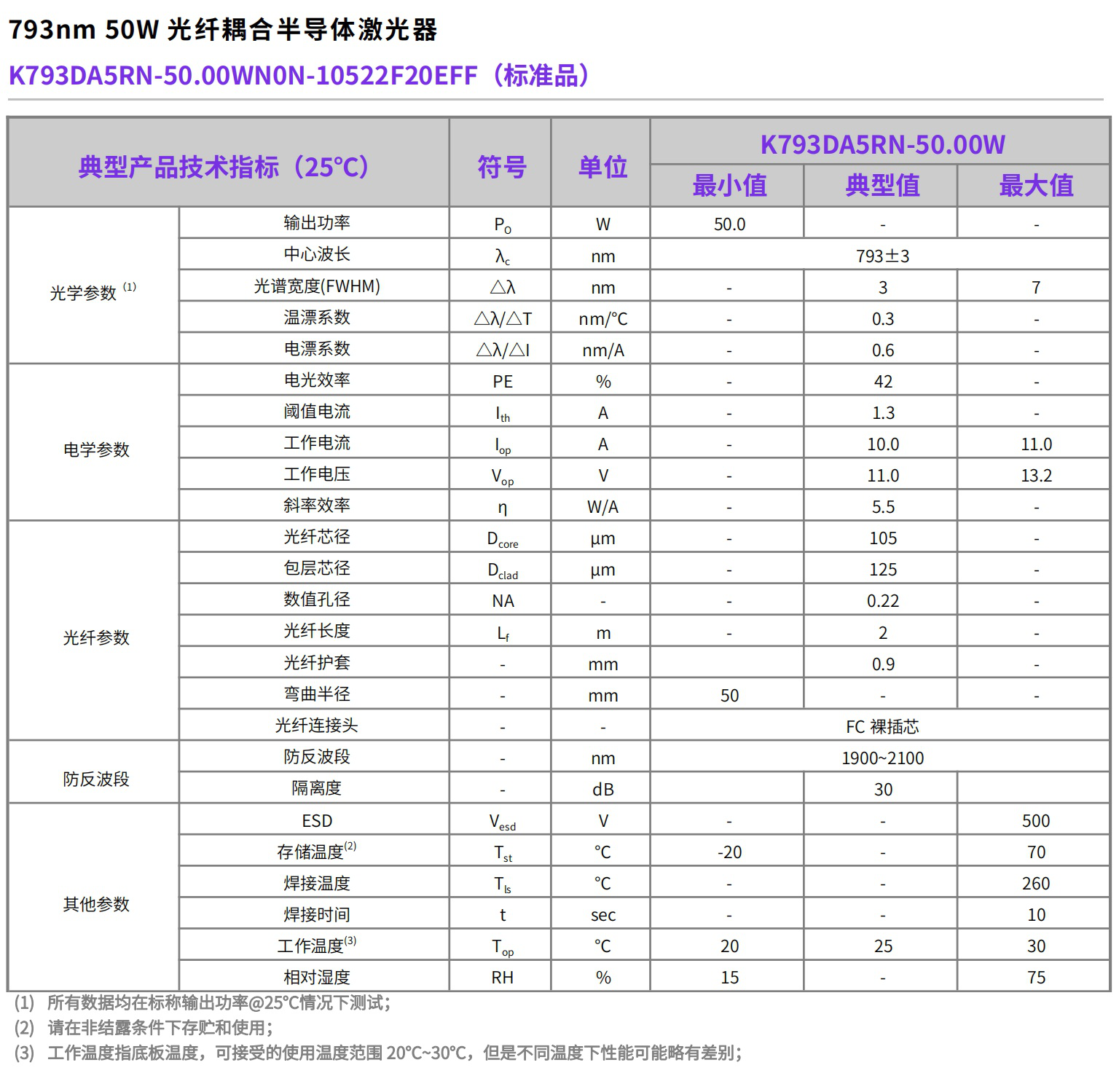

| Parameter | Value |
|---|---|
| Output Power (W) | ≥50.0W |
| Center Wavelength (nm) | 793±3nm |
| Spectral Width FWHM (nm) | Typ.:3nm; Max.:7nm |
| Wavelength Temperature Coefficient (nm/℃) | 0.3nm/℃ |
| Wavelength Current Coefficient (nm/A) | 0.6nm/A |
| Electro-Optical Efficiency (%) | 45% |
| Threshold Current (A) | 1.3A |
| Operating Current (A) | Typ.:10.0A; Max.:11.0A |
| Operating Voltage (V) | Typ.:11.0V; Max.:13.2V |
| Slope Efficiency (W/A) | 5.5W/A |
| Fiber Core Diameter (μm) | 105μm |
| Cladding Diameter (μm) | 125μm |
| Numerical Aperture (NA) | 0.22 |
| Fiber Length (m) | 2m |
| Fiber Jacket (mm) | 0.9mm |
| Bend Radius (mm) | ≥50mm |
| Fiber Connector | FC裸插芯(FC Bare Ferrule) |
| Anti-Reflection Band (nm) | 1900~2100nm |
| Isolation (dB) | ≥30dB |
| ESD (V) | ≤500V |
| Storage Temperature (℃) | -20℃~+70℃ |
| Soldering Temperature (℃) | ≤260℃ |
| Soldering Time (s) | ≤10s |
| Operating Temperature (℃) | 20℃~30℃ |
| Relative Humidity (%) | 15%~75% |
| Test Conditions | 标称输出功率@25℃ |
| Storage & Operating Conditions | 非结露(Non-condensing) |
| Operating Temperature Reference | 底板温度(Base Plate Temperature) |
| Outline Dimensions (mm) | 80×48×16mm |

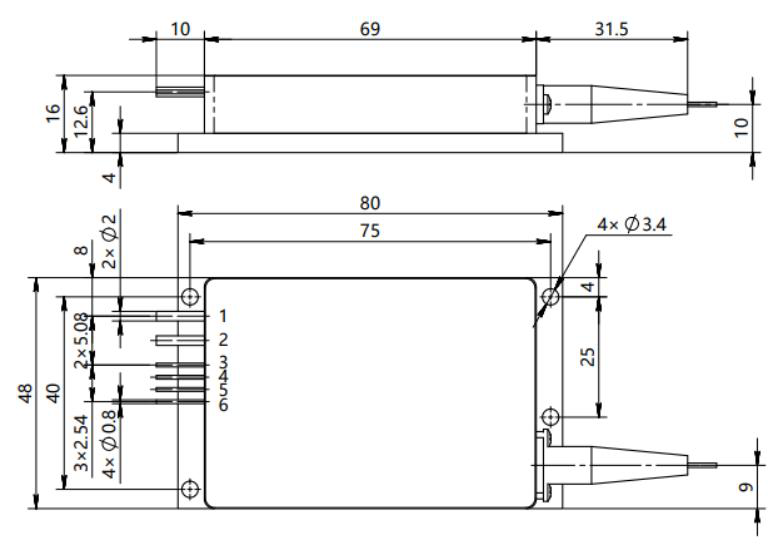

| Pin Assignment | 1:激光器(+);2:激光器(-);3/4:热敏电阻(可选);5:光敏二极管N(可选);6:光敏二极管P(可选) |
Applications
Key Features
Datasheet
Supplier Information
Related Products
-
