793nm 160W High Power Fiber Coupled Diode Laser (K793DL9RN-160.0WN0N-13522F20EFF)

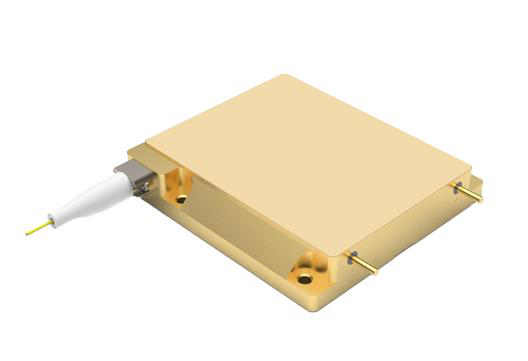

The 793nm 160W High Power Fiber Coupled Diode Laser (model K793DL9RN-160.0WN0N-13522F20EFF, standard product) is a high-performance pump module from BWT. It delivers 160W output power at a center wavelength of 793±3nm through a 135μm core / 155μm cladding multimode fiber with 0.22NA and an FC bare ferrule connector. The module features a typical electro-optical conversion efficiency of 42%, a high slope efficiency of 17.0W/A, and a built-in anti-reflection function covering 1900~2100nm with ≥30dB isolation to protect the laser from back-reflected light. Housed in a compact gold-plated package of 80×61.4×15mm, it is ideally suited as a pump source for fiber lasers (especially ~2μm thulium-doped fiber lasers) and for scientific research.
Save to Favorites
Overview
Specifications

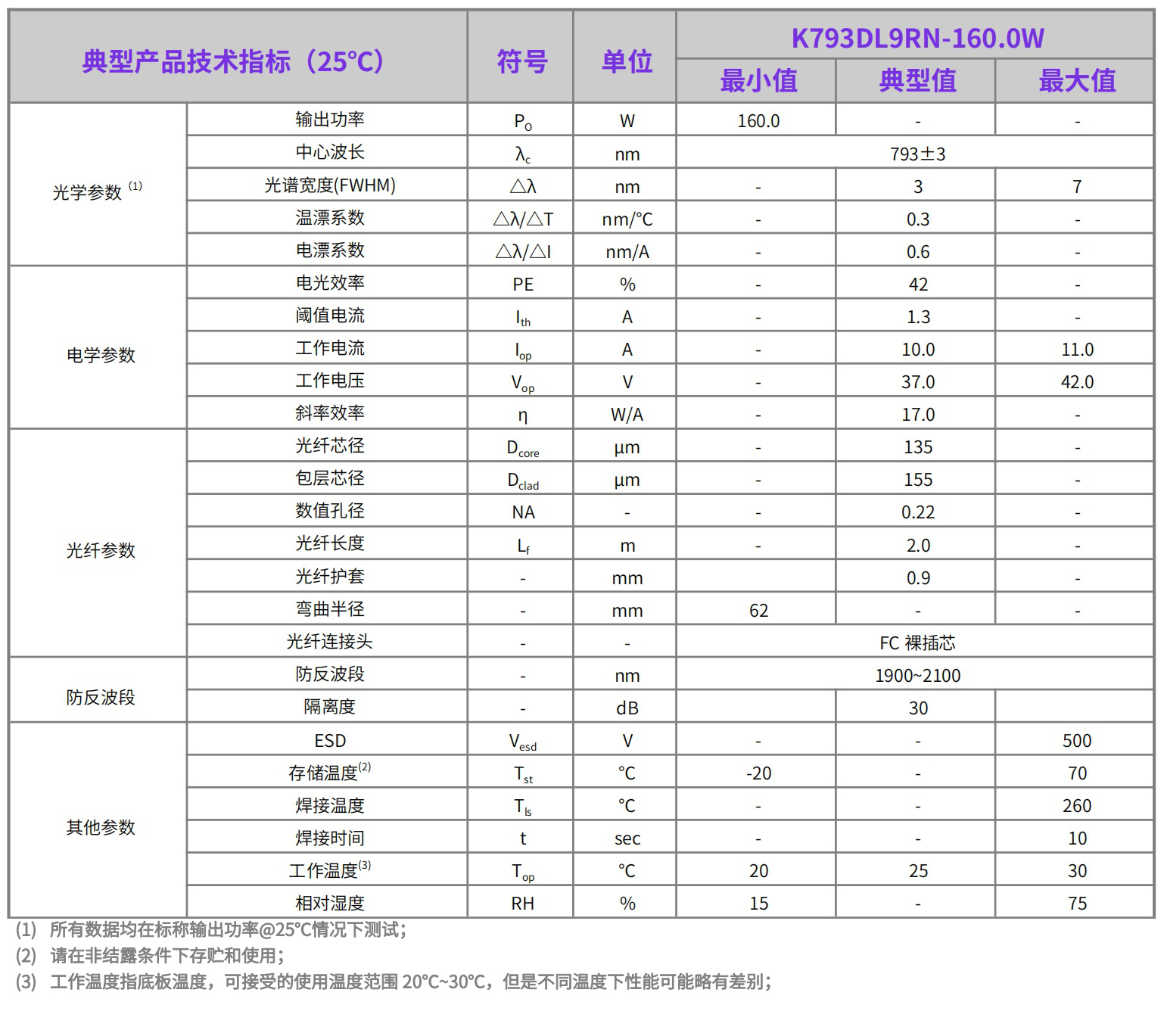

| Parameter | Value |
|---|---|
| Output Power (Po) | ≥160.0W |
| Center Wavelength (λc) | 793±3nm |
| Wavelength Temperature Coefficient (Δλ/ΔT) | 0.3nm/°C (Typ.) |
| Wavelength Current Coefficient (Δλ/ΔI) | 0.6nm/A (Typ.) |
| Fiber Core Diameter (Dcore) | 135μm |
| Cladding Diameter (Dclad) | 155μm |
| Numerical Aperture (NA) | 0.22 |
| Fiber Length (Lf) | 2.0m |
| Fiber Jacket Diameter | 0.9mm |
| Bend Radius | ≥62mm |
| Fiber Connector | FC bare ferrule |
| Anti-reflection Band | 1900~2100nm |
| ESD Withstand Voltage (Vesd) | ≤500V |
| Storage Temperature (Tst) | -20~70°C |
| Soldering Temperature (Ts) | ≤260°C |
| Soldering Time (t) | ≤10s |
| Operating Temperature (Top) | 20~30°C |
| Relative Humidity (RH) | 15~75% |

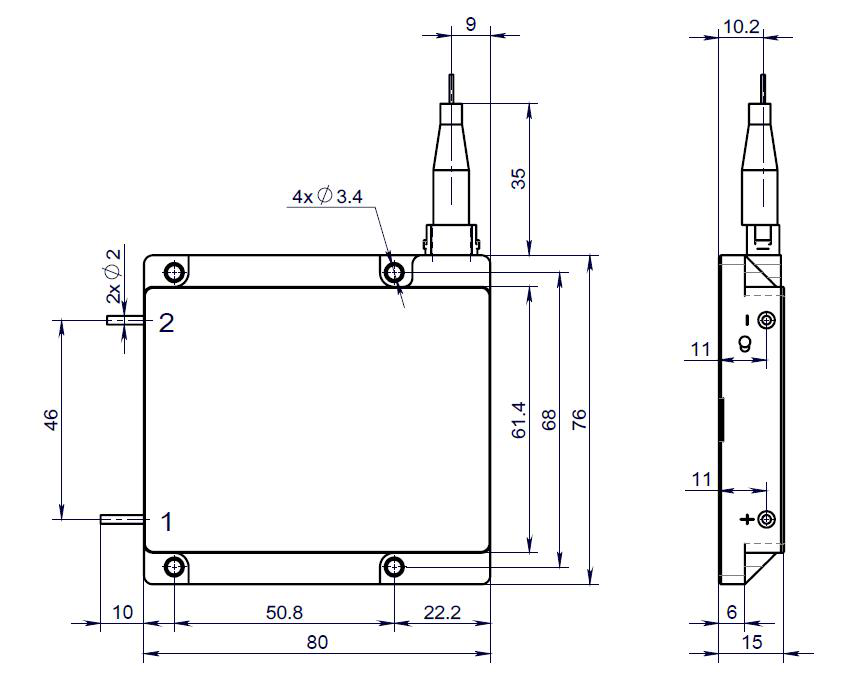

| Outline Dimensions | 80×61.4×15mm |
| Mounting Hole Size | 4×Φ3.4mm |
