MDM-15

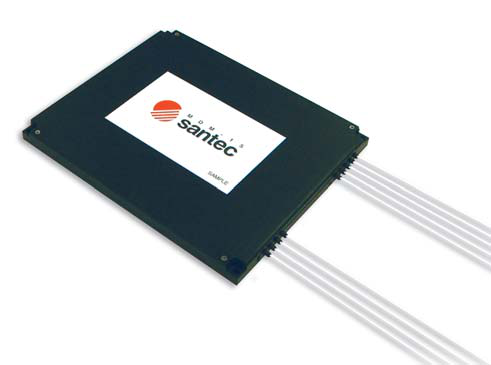

The MDM-15 is a multi-channel WDM Multiplexer or Demultiplexer based on dielectric thin-film filter technology. The module is designed to add or drop 4 channels with ITU grid spacing of 100, 200 or 400GHz. Channels can be dropped with high adjacent channel isolation and all channels are subject to low insertion loss. The MDM-15 can also be configured with an additional band splitting filter to enable device cascading in DWDM systems. In Mux and Demux configurations the filter specifications can be tailored to the end-users performance and cost requirements. The "Upgraded" MDM-15 has a common input and output port enabling an express channel for channels which are not to be dropped. Alternatively, the terminated MDM-15 (without express port) realizes lower insertion loss for each channel.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range (100GHz) | 1520-1610nm |
| Channel Spacing (100GHz) | 100GHz |
| Number of Channels (100GHz) | 4 |
| Passband (100GHz) | ±0.11nm |
| Flatness (100GHz) | 0.5dB |
| Insertion Loss Mux (100GHz) | ≤1.6dB |
| Insertion Loss DeMux (100GHz) | ≤1.9dB |
| Adjacent Isolation Mux (100GHz) | ≥12dB |
| Adjacent Isolation DeMux (100GHz) | ≥25dB |
| Non-Adjacent Isolation DeMux (100GHz) | ≥40dB |
| Directivity (100GHz) | ≥55dB |
| Return Loss (100GHz) | ≥45dB |
| Polarization Dependent Loss (PDL) (100GHz) | ≤0.2dB |
| Polarization Mode Dispersion (PMD) (100GHz) | ≤0.1ps |
| Max Optical Power (100GHz) | ≤23dBm |
| Operating Temperature (100GHz) | -5~+70°C |
| Storage Temperature (100GHz) | -40~+85°C |
| Wavelength Range (200GHz) | 1520-1610nm |
| Channel Spacing (200GHz) | 200GHz |
| Number of Channels (200GHz) | 4 |
| Passband (200GHz) | ±0.20nm |
| Flatness (200GHz) | 0.5dB |
| Insertion Loss Mux (200GHz) | ≤1.6dB |
| Insertion Loss DeMux (200GHz) | ≤1.9dB |
| Adjacent Isolation Mux (200GHz) | ≥13dB |
| Adjacent Isolation DeMux (200GHz) | ≥25dB |
| Non-Adjacent Isolation DeMux (200GHz) | ≥40dB |
| Directivity (200GHz) | ≥55dB |
| Return Loss (200GHz) | ≥45dB |
| Polarization Dependent Loss (PDL) (200GHz) | ≤0.2dB |
| Polarization Mode Dispersion (PMD) (200GHz) | ≤0.1ps |
| Max Optical Power (200GHz) | ≤23dBm |
| Operating Temperature (200GHz) | -5~+70°C |
| Storage Temperature (200GHz) | -40~+85°C |
| Dimensions | 120×100mm |
| Mounting Holes | 4-Φ2.5mm Through |
| Fiber Length | 1.0m/2.0m |
| Connector Type | No Connector/FC-SPC/FC-APC/SC-SPC/SC-APC/MU-SPC/MUJ-SPC/LC-SPC |
| Center Wavelength | e.g. 1552.52nm |
