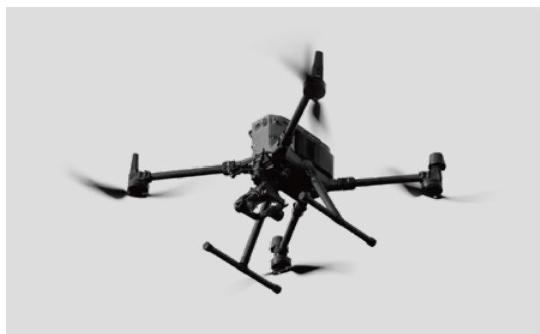

Short-Wave Infrared UAV Gimbal Camera
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Technical Specification - Type | InGaAs short wave infrared movement |
| Resolution | 640×512 |
| Pixel Center Pitch | 15μm |
| Cooling Method | Level 1 TEC |
| Response Band | 0.95±0.05~1.65±0.05μm |
| A/DResolution | 14Bit |
| Technical Specification - Gain Position | 3rd gear |
| Technical Specification | 5μs~16ms |
| Dynamic Range | ≤65dB |
| Technical Specification - Noise | ≤80e-(high gain) |
| Technical Specification - Mode | IWR/ITR |
| LensInterface | C-Mount |
| LensFocal Length | 8mm |
| Power Consumption | 2W |
