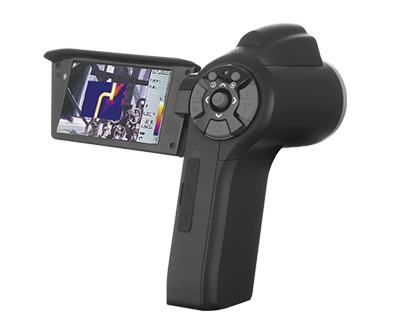

Infrared Thermal Camera
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Type | Uncooled focal plane microcalorimetry type |
| Pixels | 160×120 |
| Wavelength Range | 7.5~14μm |
| Thermal Sensitivity | 70mK |
| Minimum Imaging Distance | 20cm |
| Spatial Resolution | 2.6mrad |
| Focusing | Electric/automatic/manual |
| LCD Display | High-definition 3.2" color digital LCD display, rotatable 270°, 800×480 |
| Built-in Visible-light Camera | 3 million pixels CMOS, auto focus, 1 LED fill light |
| Magnification | 1X~4X continuous magnification |
| Color Palette | 12 options (including iron red, rainbow, black hot, white hot, etc.) |
| Temperature Measurement Range | -20℃~+250℃, 200℃~+600℃ (can be extended to 1200℃) |
| Measurement Mode | Real-time 4 movable points, 5 movable areas (rectangular and circular maximum temperature, minimum temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color) |
| Temperature Measurement Correction | automatic/manual |
| Emissivity Correction | Adjustable emissivity from 0.01 to 1.0, or correct emissivity via predefined material emissivity table |
| Background Temperature Correction | Automatic (based on entered background temperature) |
| Atmospheric Transmittance Correction | Automatic (based on entered distance, relative humidity, ambient temperature) |
| Function Settings | Date/time, temperature unit ℃/℉/K, language |
| Built-in Memory | Yes, can store >700 pictures |
| Storage Method | Auto/manual single frame image |
| Single-frame Infrared Image Format | JPEG format, image with 14-bit measurement data |
| Single-frame Visible-light Image Format | JPEG format, or stored with single frame image (picture-in-picture) |
| Voice Annotation | 40s voice format, stored together with the image (built-in microphone) |
| Laser Class | Level 2 |
| Laser Power | 1mW |
| SD Card Slot | Yes |
| Video Output | CVBS |
| Audio Output | Yes |
| USB Interface | USB2.0, transmit images, measurement data, and voice to computer |
| Tripod Mount | 1/4” -20 |
| Battery Type | Lithium battery, rechargeable |
| Operating Time | 2 hours of continuous operation (normal temperature) |
| Charging Type | Smart charger charging or local charging |
| Power-saving Mode | Yes |
| Storage Temperature | -40℃~+70℃ |
| Vibration | 2G(IEC60068-2-6) |
| Shock | 25G(IEC60068-2-29) |
| Ingress Protection Rating | IP54(IEC60529) |
| Dimensions | 128mm×62mm×154mm |
| Optional Configuration | Laptops, SLR cameras |
| Third-party Inspection | National Infrared and Industrial Electric Heating Products Quality Supervision and Inspection Center, China Institute of Metrology, China Electric Power Research Institute |
