Home All Products Imaging Infrared Imaging Heavy-Duty Dual-Spectrum Pan-Tilt Unit

Infrared Imaging

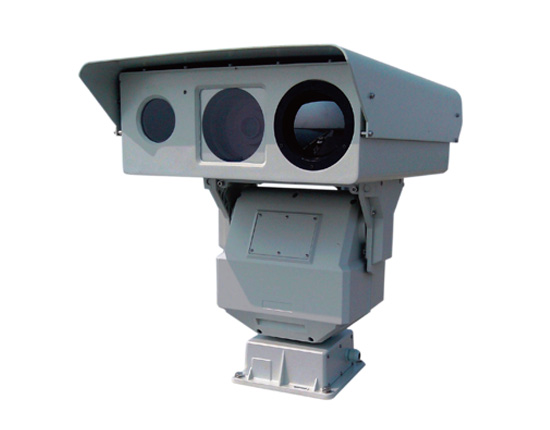

Heavy-Duty Dual-Spectrum Pan-Tilt Unit

Supplier

Ulirvision

Part Number

TC800PTZ

Overview

The TC800PTZ infrared thermal imaging camera is composed of a large-diameter continuous zoom infrared thermal imaging camera, a full-HD color black and white dual-mode low-illumination visible light camera, a 360-degree all-round high-precision pan/tilt, and a fully sealed anti-corrosion shield. It can be equipped with laser lighting or laser as needed.Optical ranging, Beidou/GPS, electronic multi-disk module; it is a camera specially designed and developed for the field of remote day and night monitoring. It can detect and alarm fire sources within 6KM to ensure the safety of life and property. It is suitable for long-distance monitoring in scenarios such as border and coastal defense bases.

Specifications

Parameter	Value
	VOX Uncooled Focal Plane Detector
	17μm
	8~14μm
	≤50mK
	Continuous zoom
	31mm
	High infrared transmittance, no virtual focus or small axis during zooming process
	4.8KM/13KM/6KM (fire source target 2X2m)
	1.3KM/3.4KM
	The second generation SDE digital image enhancement algorithm improves image details, NUC correction: automatic/manual correction, background correction
	AGC automatic gain control, brightness, contrast
	50Hz
	2X, 4X, support global synchronous display
	Black hot/white hot 16 false color images
	automatic/manual
	255 levels can be set
	The range can be set to automatically identify targets of different sizes.
	1-16 can be set, automatically select the most prominent target to display
	Video overlay alarm box + switch value (or data return) multiple alarm methods, the alarm is intuitive and easy to read
	Optimized front-end fast processing algorithm, based on each frame analysis of original heat map data, alarm response 0.1S, no delay, no information loss
	All alarm parameters and instructions can be set remotely through the video OSD menu, which is highly versatile.
	Optional special early warning platform software to achieve a variety of needs and functions
	1920×1080 200W pixels
	Ultra-low illumination starlight level CMOS
	Optical infrared correction design, consistent focus day and night
	Support electronic fogging and optical fogging
	Color: 0.0005Lux; black and white: 0.0001Lux; 0Lux (IRON)
	H.265/H.264/MPEG4/MIPEG video format, supports multiple streams
	32Kbps～16Mbps, 60Hz30 frames/second
	Heat wave drift suppression, electronic image stabilization, white balance, electronic shutter, strong light suppression, 3D digital noise reduction, wide dynamic range, anti-infrared overexposure, ABF automatic back focus adjustment function
	PELCO-D support
	0°~ 360° Accuracy: ±0.1°
	-45°~ +45°
	0.01°~ 30°/s supports lens focal length adaptation
	0.01°~ 15°/s supports lens focal length adaptation
	aviation interface
	1 RJ45 10M/100M adaptive Ethernet port
	RS485
	≤180W
	-25°C~+65°C (optional -40°C) Humidity <90%
	-45℃
	IP66 (optional IP67)
	Power supply 4000V, communication video signal 2000V
	0.2g
	15g
	When the pH value is 6.5~7.2, spray continuously for 48 hours, and there will be no change in the surface.
	≤50kg
	Laser ranging or laser lighting, GPS/Beidou, electronic compass, special software

Applications

Border security; Shore security; Urban high points

Key Features

The thermal image detector is based on the new generation of MEMS technology, NETD ≤ 50mk, with more delicate picture quality and less affected by fog, rain and snow; supports hotspot detection and alarm, based on front-end raw data algorithms; can expand laser ranging or laser lighting, Beidou/GPS, electronic compass and other sensors; uses a high-definition network camera and a large zoom lens, with fog penetration function and multiple user-defined automatic configuration modes to meet various scene detection requirements; Unique AS+DOE advanced optical continuous zoom design and 3CAM high-precision opto-mechanical design, the zoom is smooth and stable, which is conducive to large-scale search and long-distance identification;; SDE image detail enhancement technology, the image is smooth and noise-free, multiple pseudo-color and hot black hot white polar image mode switching, strong adaptability, easy to find low contrast hidden targets
