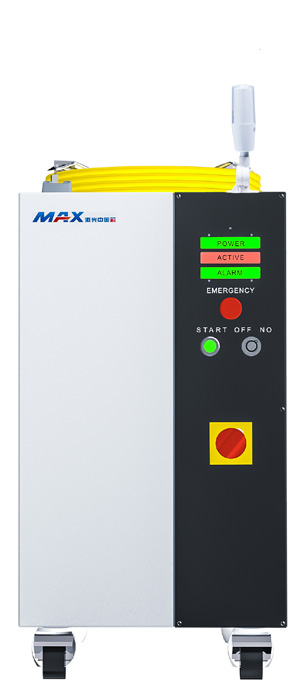

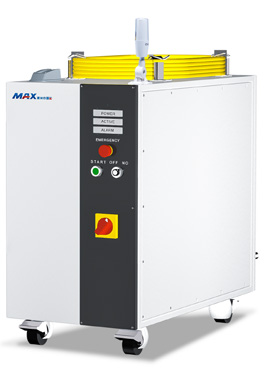

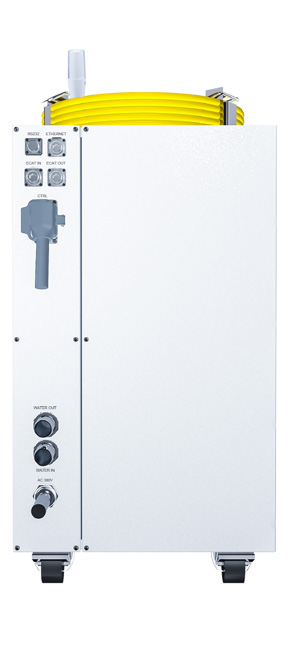

MFSC 12000 Single-mode Continuous Fiber Laser
The MFSC series fiber laser is a high-power industrial laser designed for applications such as welding, cutting, and cladding. It offers high efficiency, reliability, and compact design.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Mode | 连续/调制 |
| Polarization | 随机 |
| MFSC-12000 | 100%功率连续输出 |
| Power Adjustment Range | 10-100% |
| Central Wavelength | 1070-1090nm |
| Spectral Width (3dB) | 5-7nm |
| Short-term Power Stability | ±1% |
| Long-term Power Stability | ±2% |
| Beam Quality (BPP) | 1.2-2.2mm×mrad |
| Output Fiber Core Diameter | 50/100/200μm |
| Fiber Cable Bending Radius | 200mm |

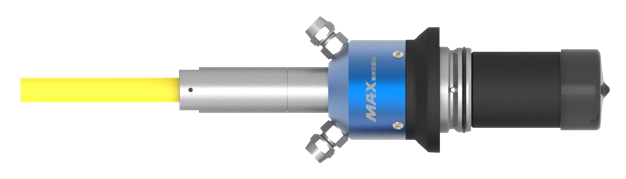

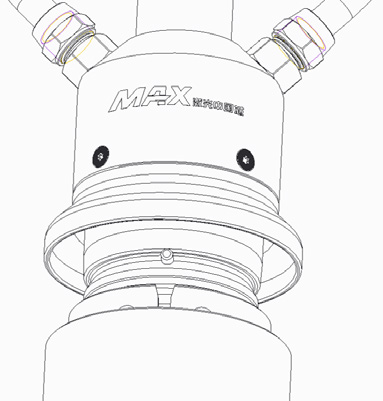

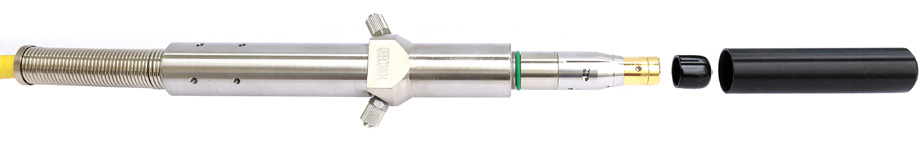

| Output Mode | LOE |
| Operating Voltage | 360-440VAC |
| Input Power | 40KW |

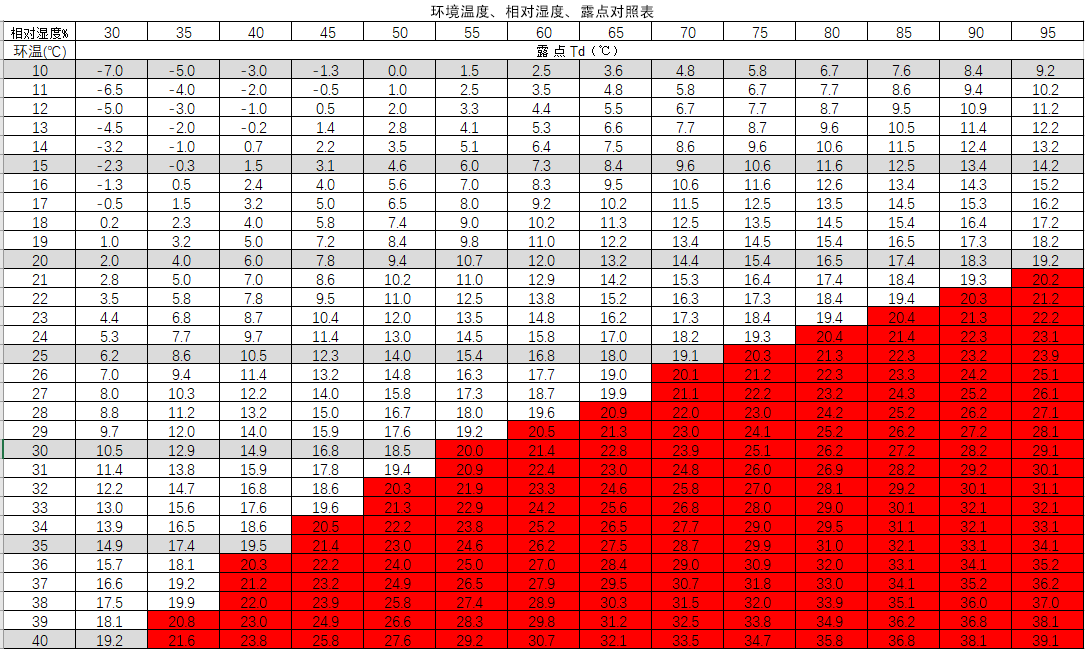

| Operating Environment Temperature | 10-40°C |
| Operating Environment Relative Humidity | 10-80% |
| Cooling Method | 水冷 |
| Cooling Medium | 蒸馏水(0°C以上)/乙二醇防冻液(0°C以下) |
| Storage Temperature | -10-60°C |

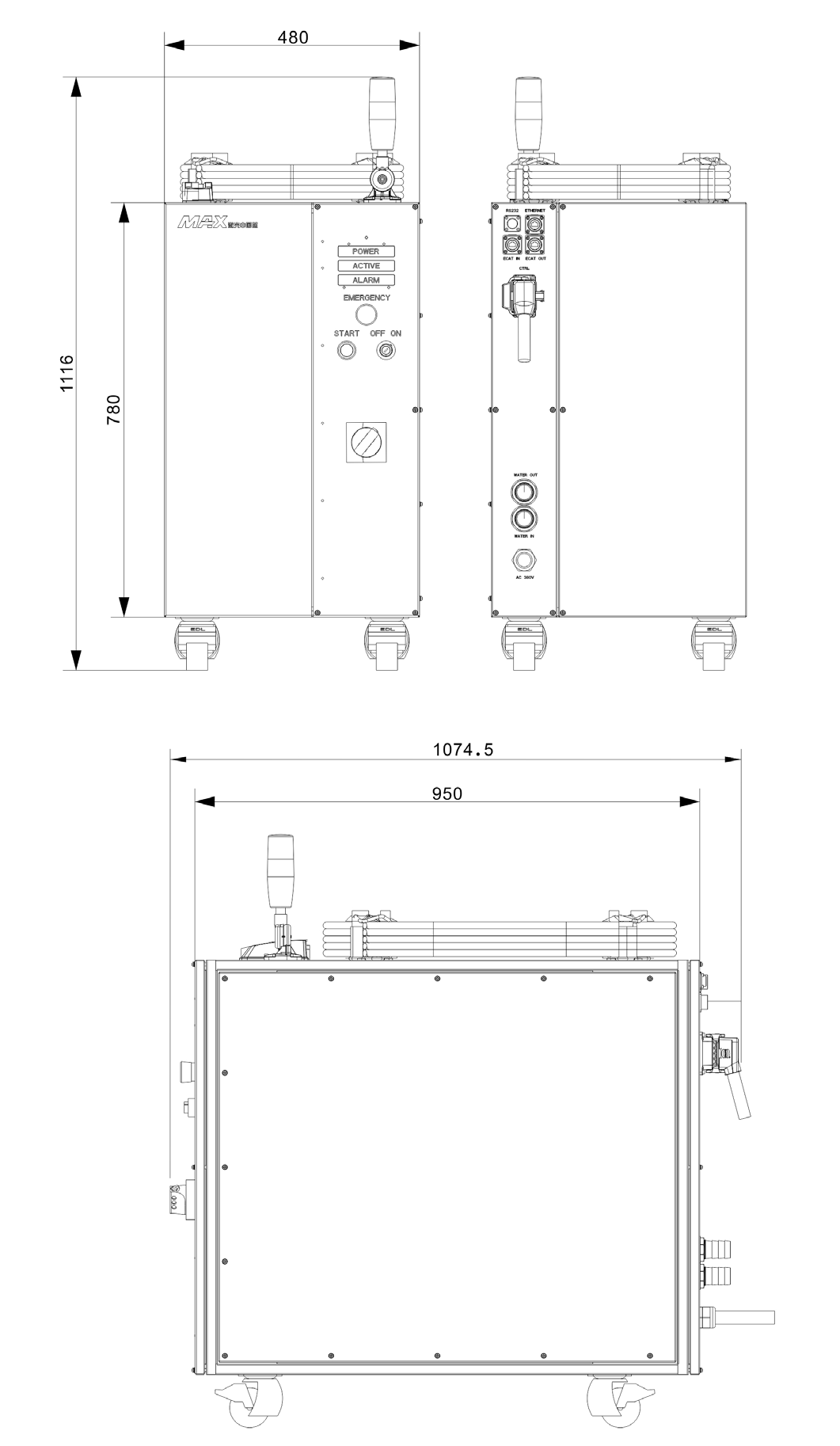

| Dimensions | 宽×深×高=480×950×780mm |
| Weight | 290(±10)kg |
| Water Temperature | 夏天24°C 冬天20°C |
| Water Pressure | ≥4bar |
| MFSC-12000 Water Flow Requirement | 100L/min |
| MFSC-12000 Chiller Cooling Capacity | 28KW |
| Cooling Pipe Size Requirement | QBH:Φ6 LOE:Φ8 |
| Cooling Water Temperature | 28-30°C |
| Cooling Water Flow | ≥4L/min |
| Cooling Water Pressure | ≥4bar |
