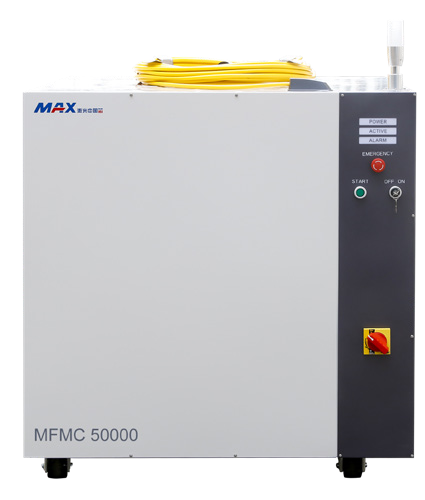

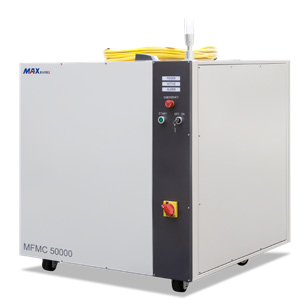

MFMC 40000-50000(G5) Multi-mode Continuous Fiber Laser
The MFMC series fiber laser is a high-power, efficient, and reliable industrial laser product designed for applications such as welding, cutting, and cladding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Mode | 连续/调制 |
| Polarization | 随机 |
| MFMC-40000 Power Output | 40000W |
| MFMC-50000 Power Output | 50000W |
| Power Adjustment Range | 10-100% |
| Central Wavelength | 1070-1080-1090nm |
| Spectral Width (3dB) | 5-8nm |
| Short-term Power Stability | ±1%±2% |
| Long-term Power Stability | ±2%±3% |
| Beam Quality (BPP) Output Fiber Core Diameter 100um | 4-5.5mm*mrad |
| Beam Quality (BPP) Output Fiber Core Diameter 150um | 5.5-6.5mm*mrad |
| Beam Quality (BPP) Output Fiber Core Diameter 200um | 8-10mm*mrad |
| Laser Start Time | 150-200μs |
| Laser Shutdown Time | 150-200μs |
| Modulation Frequency | 5kHz |
| Indicator Red Light Power | 400μW |
| Fiber Cable Length | 20m(可选30m/35m) |
| Output Fiber Core Diameter | 100(150可选)μm |
| Fiber Cable Bending Radius | 200mm |

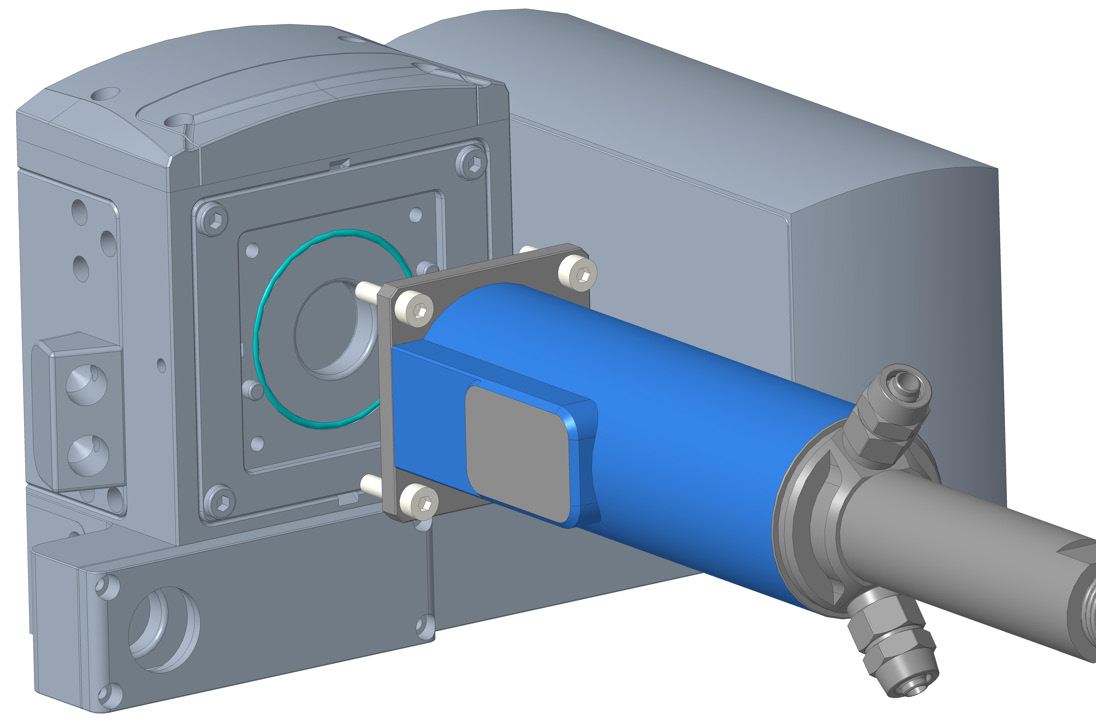

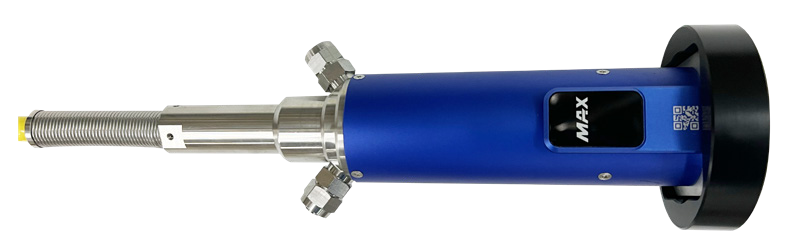

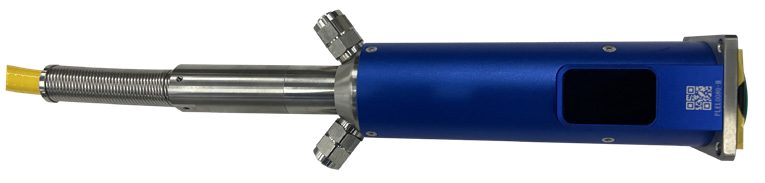

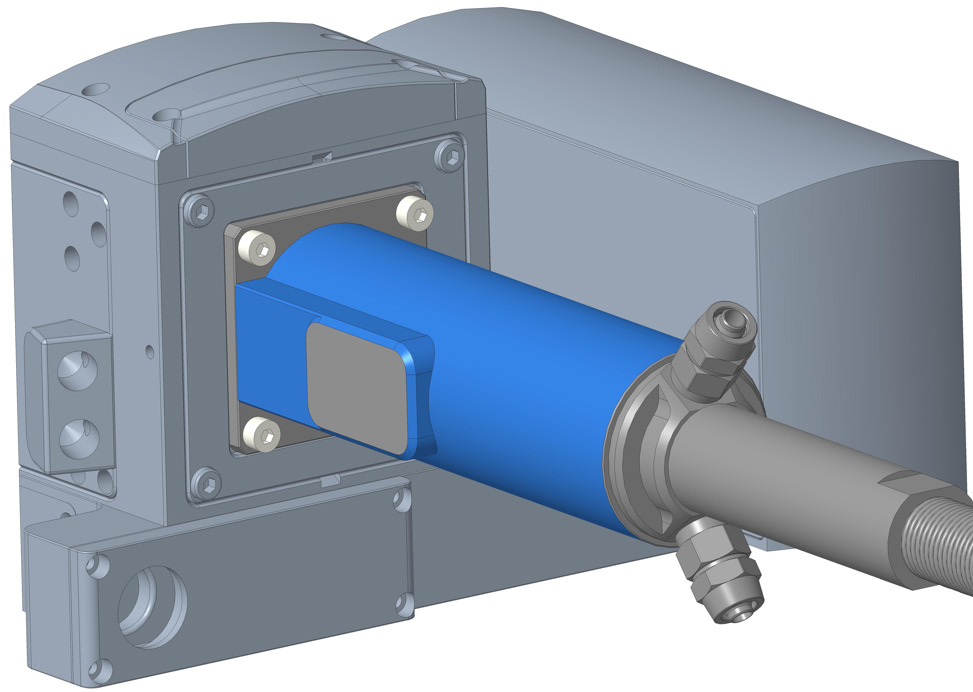

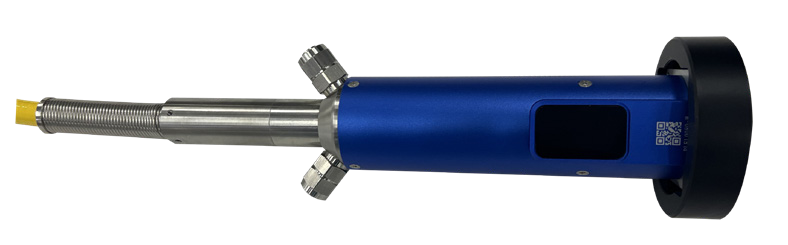

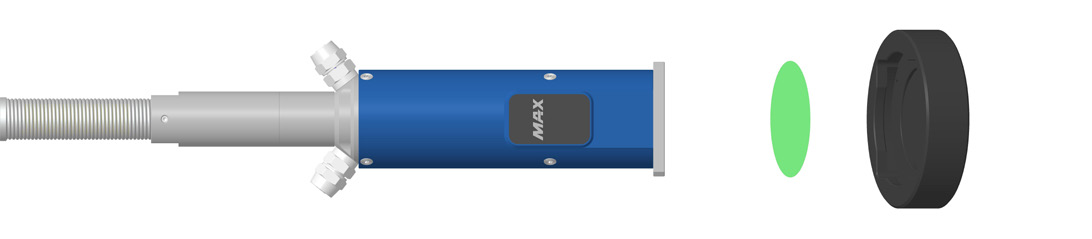

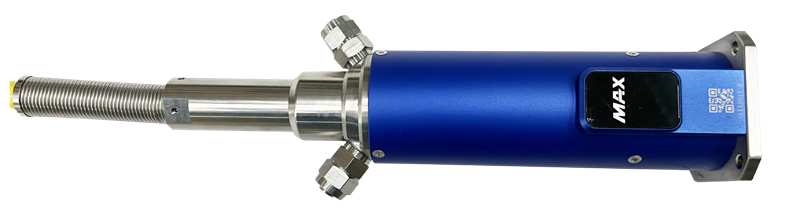

| Output Method | LOE |
| Operating Voltage | 360-440VAC |
| Input Power | 132KW(MFMC-40000), 165KW(MFMC-50000) |
| Operating Environment Temperature | 10-40°C |
| Operating Environment Relative Humidity | 10-80% |
| Cooling Method | 水冷 |
| Cooling Medium | 蒸馏水(0°C以上)/乙二醇防冻液(0°C以下) |
| Storage Temperature | -10-60°C |

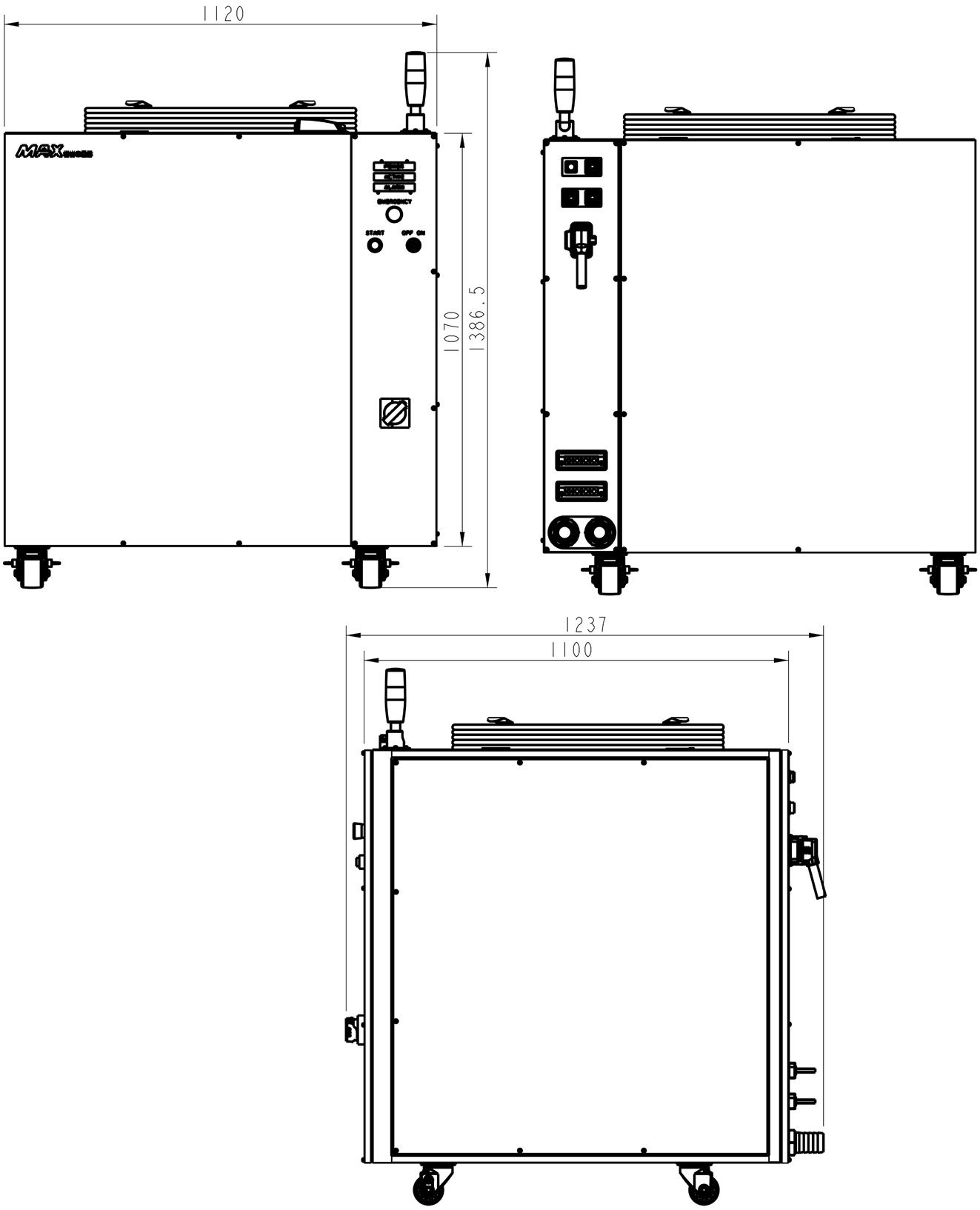

| Machine Dimensions | 1120*1100*1070mm(W*D*H) |
| Machine Weight | 857(±10)kg(MFMC-40000), 936(±10)kg(MFMC-50000) |
| Water Temperature | 冬天≥20°C, 夏天≥24°C |
| Water Pressure | ≥4.5bar |
| MFMC-40000 Water Flow Requirement | ≥450L/min |
| MFMC-50000 Water Flow Requirement | ≥450L/min |
| MFMC-40000 Chiller Rated Cooling Capacity | ≥100KW |
| MFMC-50000 Chiller Rated Cooling Capacity | ≥120KW |
| LOE Water Pipe Size Requirement | Ø12 |
| LOE Water Flow | ≥4L/min |
| LOE Water Pressure | ≥4bar |
| LOE Cooling Water Temperature | 28-30°C |
