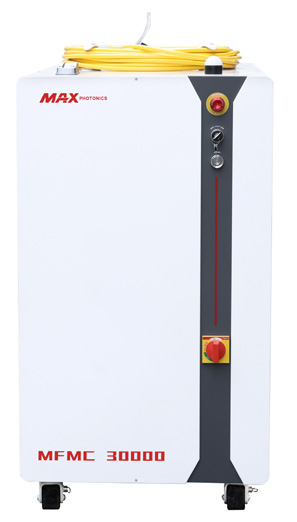

MFMC 20000-30000M(W) Multi-Mode Continuous Welding Fiber Laser
The MFMC series fiber laser is a high-power, efficient, and reliable industrial laser designed for applications such as welding, cutting, and cladding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Mode | 连续/调制 |
| Polarization | 随机 |
| MFMC-20000 100% Power Continuous Output | 20000W |
| MFMC-30000 100% Power Continuous Output | 30000W |
| Power Adjustment Range | 10-100% |
| Central Wavelength | 1075-1080-1085nm |
| Spectral Width (3dB) | 5nm |
| Power Stability | ±1%-±1.5% |
| Output Fiber Core Diameter 150um Beam Quality (BPP) | 5.5-6.5mm×mrad |
| Output Fiber Core Diameter 200um Beam Quality (BPP) | 7-10mm×mrad |
| Output Fiber Core Diameter 300um Beam Quality (BPP) | 10-13mm×mrad |
| Output Fiber Core Diameter 400um Beam Quality (BPP) | 14-20mm×mrad |
| Output Fiber Core Diameter 600um Beam Quality (BPP) | 24-30mm×mrad |
| Laser Start Time | 10-50μs |
| Laser Shutdown Time | 10-50μs |
| Modulation Frequency | 100%输出50KHz |
| Indicator Red Light Power | 400μW |
| Fiber Cable Length | 25-35(30可选)m |
| Output Fiber Core Diameter | 150(200/300/400/600可选)μm |
| Fiber Cable Bending Radius | 200mm |

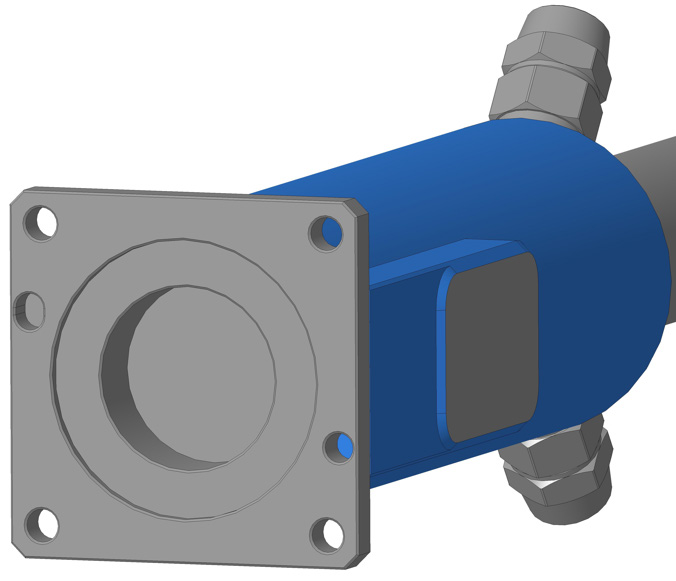

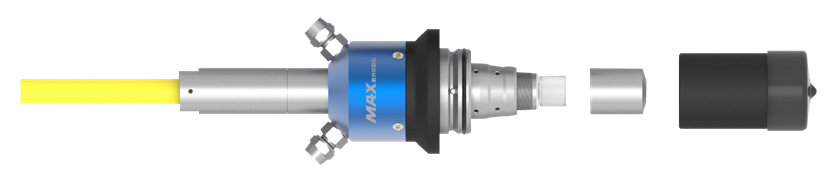

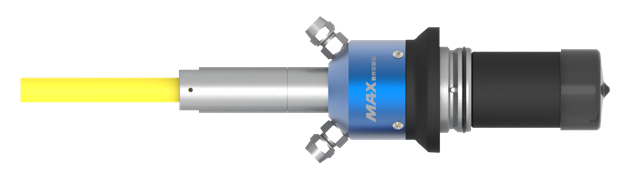

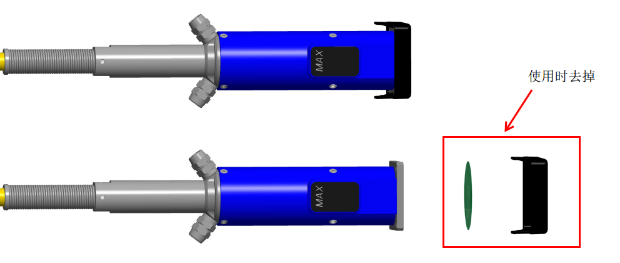

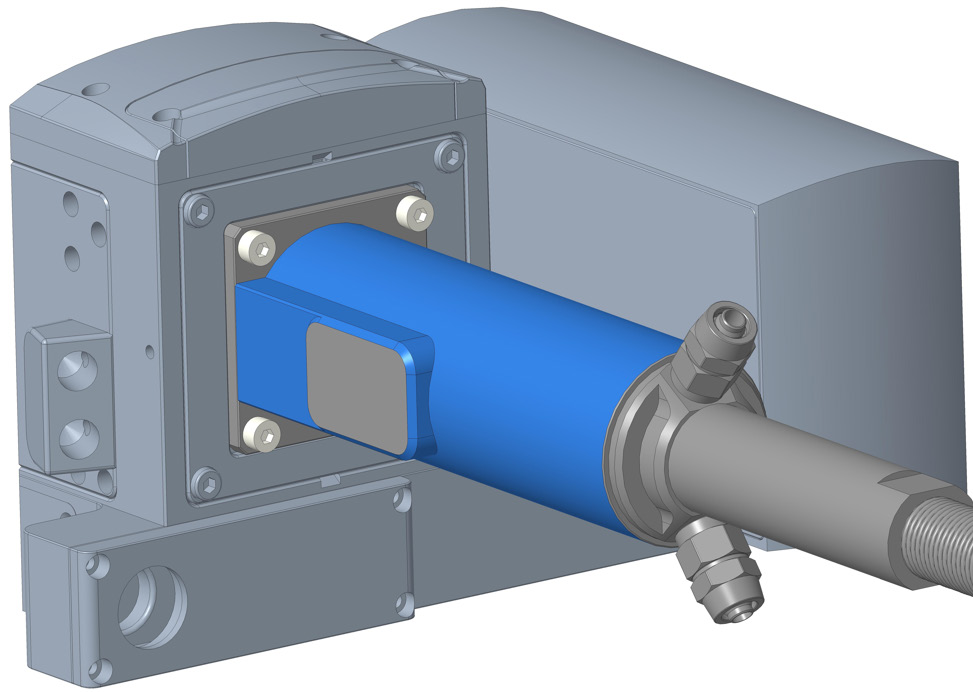

| Output Method | LOE |
| Operating Voltage | 360-440VAC |
| Input Power MFMC-20000 100% Output | 53KW |
| Input Power MFMC-30000 100% Output | 80KW |
| Operating Environment Temperature | 10-40°C |
| Operating Environment Relative Humidity | 10-80% |
| Cooling Method | 水冷 |
| Cooling Medium | 蒸馏水(0°C以上)/乙二醇防冻液(0°C以下) |
| Storage Temperature | -10-25-60°C |

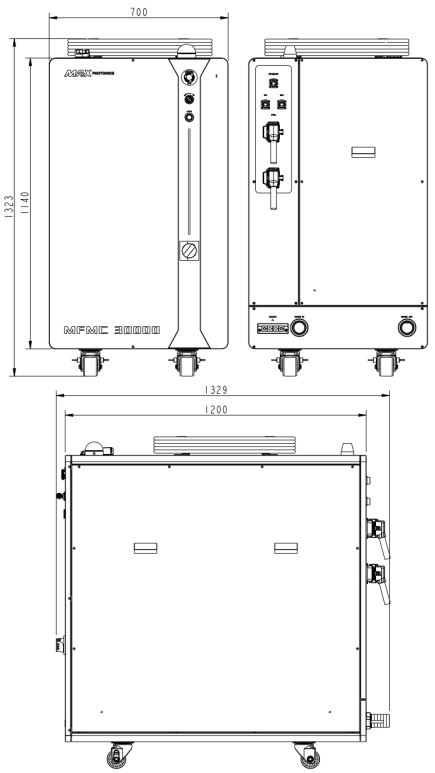

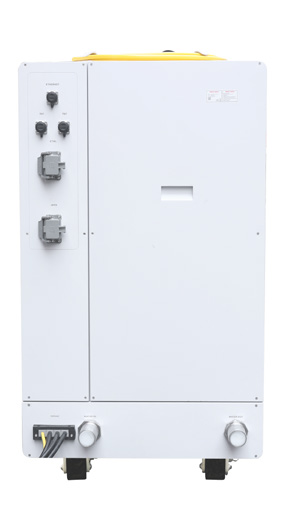

| Machine Dimensions | 700×1200×1040(W×D×H)mm |
| Machine Weight MFMC-20000 | 455(±10)kg |
| Machine Weight MFMC-30000 | 535(±10)kg |
| Water Temperature | 冬天20°C夏天24°C |
| Water Pressure | ≥3bar |
| MFMC-20000 Water Flow Requirement | ≥200L/min |
| MFMC-30000 Water Flow Requirement | ≥280L/min |
| MFMC-20000 Water Machine Rated Cooling Capacity | ≥40KW |
| MFMC-30000 Water Machine Rated Cooling Capacity | ≥60KW |
| LOE Water Cooling Conditions Pipe Size Requirement | Φ8 |
| LOE Water Cooling Conditions Water Flow | ≥4L/min |
| LOE Water Cooling Conditions Water Pressure | ≥4bar |
| LOE Water Cooling Conditions Cooling Water Temperature | 28-30°C |
