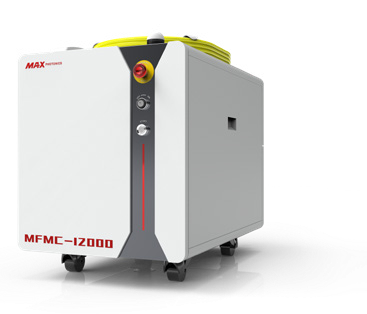

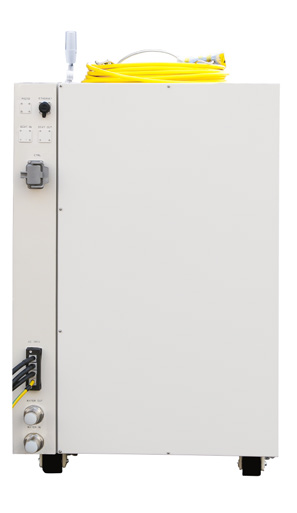

MFMC 12000M(W) Multi-Mode Continuous Welding Fiber Laser
The MFMC series fiber laser is a high-power, efficient, and reliable industrial laser designed for applications such as welding, cutting, and cladding.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Mode | 连续/调制 |
| Polarization | 随机 |
| MFMC-12000 | 100%功率连续输出 |
| Power Adjustment Range | 5-100% |
| Central Wavelength (3dB) | 1075-1085nm |
| Power Spectral Width (3dB) | 5-7nm |
| Power Stability | ±1%±1.5% |
| Beam Quality (BPP) | 输出光纤芯径100um:3-4mm×mrad 输出光纤芯径150um:5.5-6.5mm×mrad 输出光纤芯径200um:7-10mm×mrad 输出光纤芯径300um:10-13mm×mrad 输出光纤芯径400um:14-20mm×mrad 输出光纤芯径600um:24-30mm×mrad |
| Laser Start Time | 10-50μs |
| Laser Shutdown Time | 10-50μs |
| Modulation Frequency | 100%输出50kHz |
| Indicator Red Light Power | 400μW |
| Fiber Cable Length | 25-35(30可选)m |
| Output Fiber Core Diameter | 100(150/300/400/600可选)μm |
| Fiber Cable Bending Radius | 200mm |

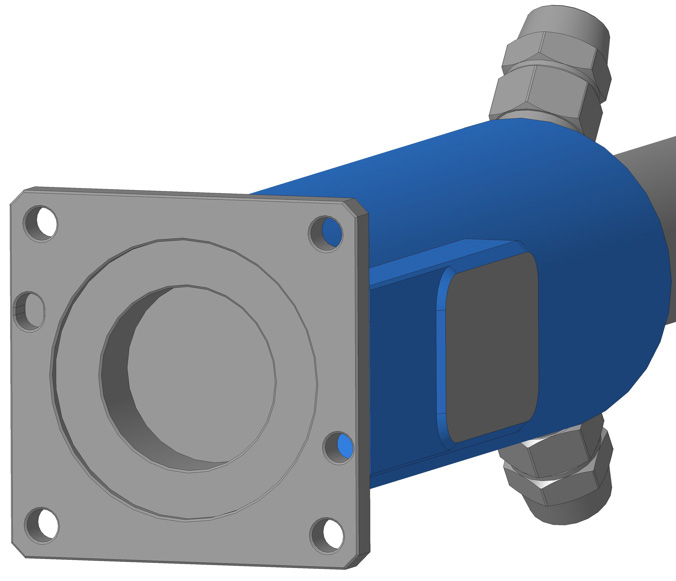

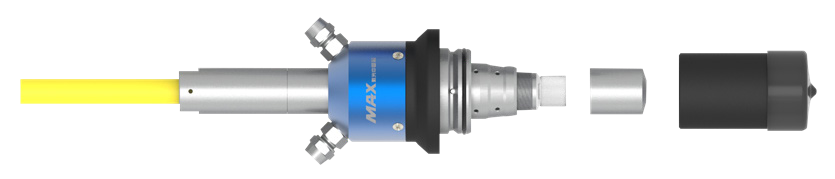

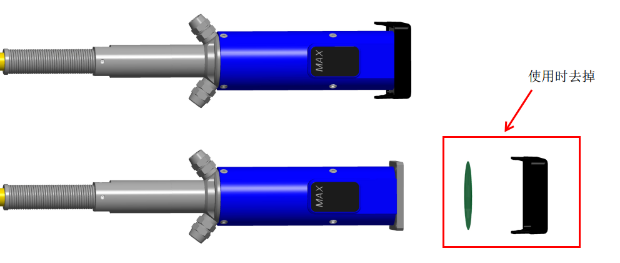

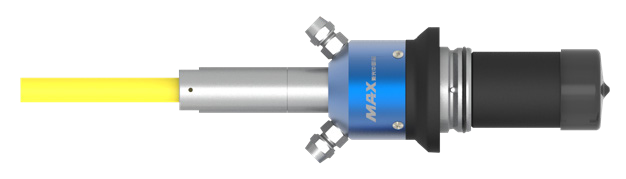

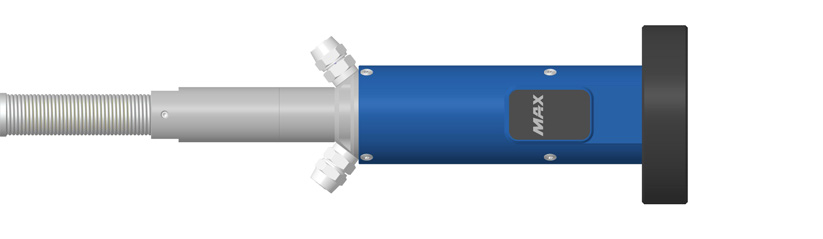

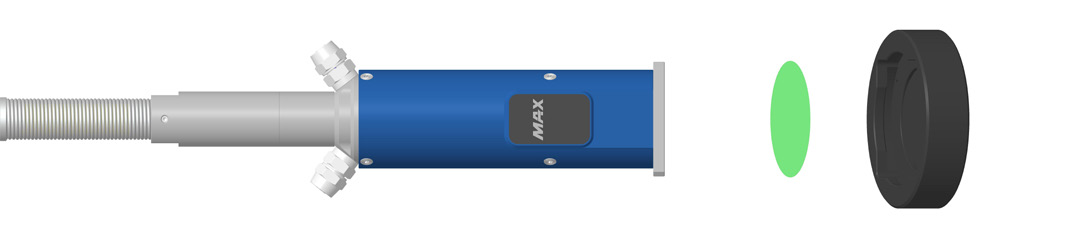

| Output Method | LOE(可定制) |
| Operating Voltage | 360-440VAC |
| Input Power | 33KW |
| Operating Environment Temperature | 10-40°C |
| Operating Environment Relative Humidity | 10-80% |
| Cooling Method | 水冷 |
| Cooling Medium | 蒸馏水(0°C以上)/乙二醇防冻液(0°C以下) |
| Storage Temperature | -10-60°C |

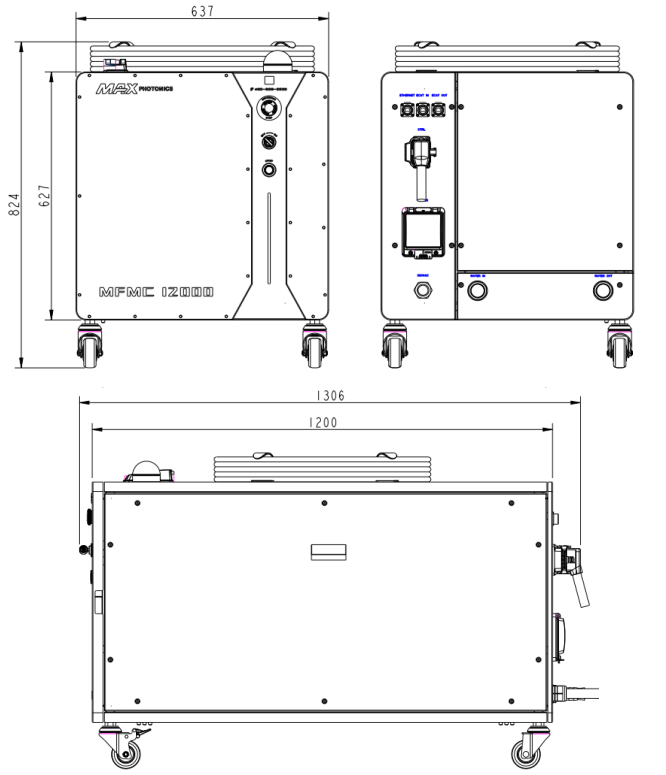

| Machine Dimensions | 637×1200×627(W×D×H)mm |
| Machine Weight | 240(±10)kg |
| Water Temperature | 冬天20°C 夏天24°C |
| Water Pressure | ≥3bar |
| MFMC-12000 Water Flow Requirement | ≥100L/min |
| MFMC-12000 Water Machine Cooling Capacity | ≥28KW |
| LOE&QBH Water Cooling Conditions | 水管内径≤8mm,长度≤20m;水流量≥4L/min;水压≥4bar;冷却水温28-30°C |
