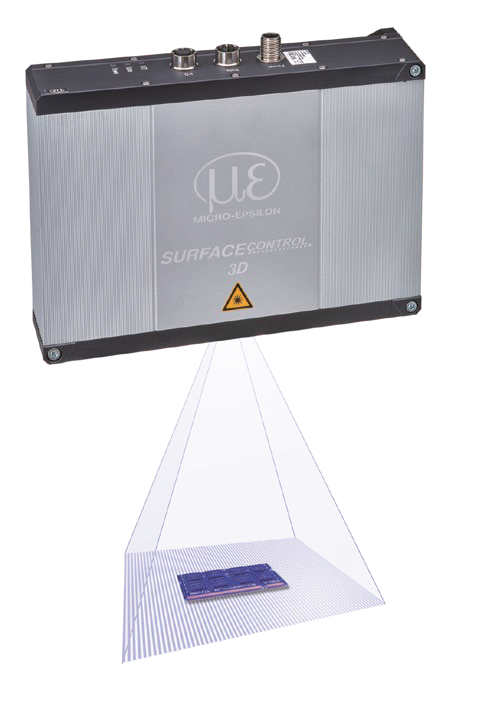

surfaceCONTROL 3D 3500
High-precision inline 3D measurement sensor designed for surface inspection and shape detection.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Repeatability | 0.25μm |
| Z-Axis Resolution | 0.7μm |
| 3D Data Points per Second | 2200000 |
| Digital Interface | GigE Vision/GenICam, PROFINET, EtherNet/IP |
| Storage Temperature | -20...+70°C |
| Protection Class | IP67 |
| Weight | 1.9kg |
| Light Source | LED |
| Power Supply Voltage | 24VDC ±20% |
| Maximum Current | 0.5...2.5A |
| Resolution X,Y | 8μm |
| Resolution Z | 0.25μm |
| Measurement Area Dimensions | 130±3mm |
| Material | Aluminum housing |
| Material | protective glass |

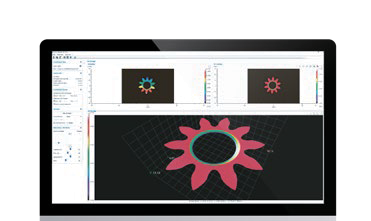

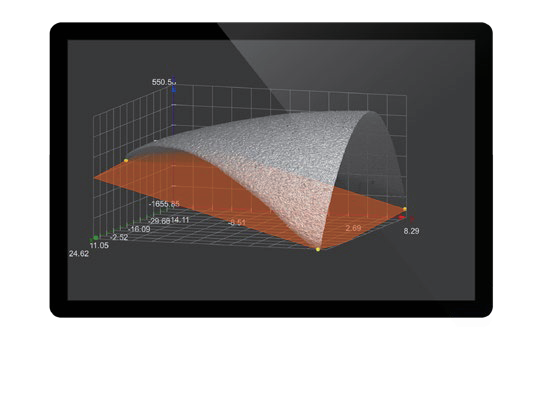

| 3D Software | 3DInspect |
| Mounting Method | 3x M12 screws |
| Shock Resistance | 15g/6ms |
| Vibration Resistance | 2g/10...500Hz |
