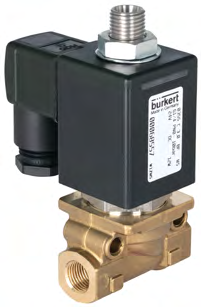

Type 0355 Plunger Valve
Direct-acting plunger solenoid valve Type 0355 for controlling hot media such as steam, oils, and gases.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 5 |
| Seal Material | NBR |
| Seal Material | FKM |
| Seal Material | PTFE |
| Seal Material | EPDM |
| Body Material | Brass with stainless steel seat 1.4305, stainless steel 1.4581 |
| Coil Material | Epoxy |
| Inner Part of Valve | Stainless steel |
| Orifice | DN2.0...DN4.0 |
| Circuit Function | C (3/2-way solenoid valve, direct-acting, normally closed) |
| Thermal insulation class of solenoid coil | Epoxy coil class H |
| Duty Cycle | 100% continuous operation |
| Operating Voltage | 24VDC, 24V50Hz, 110V50Hz, 230V50Hz |
| Voltage Tolerance | ±10% |
| Power Consumption | Inrush: AC 35...40VA, Hold (warm coil): AC 16VA/10W, DC approx. 12W |
| High Temperature Coil CF42 Cold Performance | 10W |
| High Temperature Coil CF42 Warm Performance | 6W |
| High Temperature Coil CF09 Cold Performance | 13W |
| High Temperature Coil CF09 Warm Performance | 7W |
| Operating Medium | Neutral liquids, hydraulic oil, oil without additives, oil-free and fat-free liquids, per-solutions, hot oils with additives, steam, organic solvents |
| Medium Temperature Range with NBR | -10°C...+90°C |
| Medium Temperature Range with EPDM | -40°C...+130°C |
| Medium Temperature Range with PTFE | -40°C...+180°C |
| Electrical Connection | Plug contacts according to DIN EN 175301-803 form A |
| Port Connection | G1/4, NPT on request |
| Degree of Protection | IP65 with cable plug, IP50 without cable plug for high-temperature devices |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C (+200°C on request) |
| Brass Body Orifice | 2.0mm, 3.0mm, 4.0mm |
| Brass Body Kv Value Water | 0.11m³/h, 0.2m³/h, 0.4m³/h |
| Brass Body Pressure Range | 0...16bar, 0...14bar, 0...10bar, 0.5...5bar |
| Brass Body Seal Material | EPDM |
| Brass Body Seal Material | PTFE |
| Brass Body Seal Material | FKM |
| Brass Body Seal Material | NBR |
| Stainless Steel Body Orifice | 4.0mm |
| Stainless Steel Body Kv Value Water | 0.4m³/h |
| Stainless Steel Body Pressure Range | 0.5...5bar |
| Stainless Steel Body Seal Material | PTFE |
| Stainless Steel Body Seal Material | FKM |
