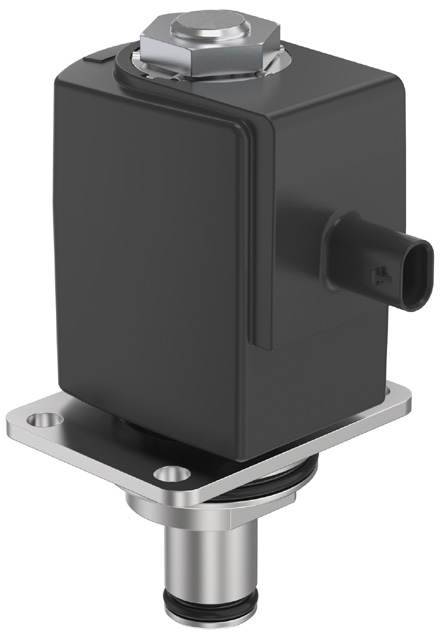

6020 Type Direct-acting 2-way Proportional Valve
The 6020 Type is a direct-acting 2-way proportional valve designed for flow and pressure control circuits. It features high sealing tightness, a proportional solenoid for precise control, and is suitable for simple system integration. The valve is available with IP65 or IP69K protection class and automotive connectors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to Section 5 |
| Materials | EPDM |
| Materials | FKM |
| Valve Body | Stainless Steel 1.4404/316L |
| Sealing | EPDM |
| Sealing | FKM |
| Flow Characteristics | 1x10^-4mbar/s |
| Nominal Diameter | DN2.5-DN8 |
| Circuit Function | A |
| Thermal insulation class of solenoid coil | H |
| Typical Control Characteristics-Sensitivity | <1% F.S. |
| Typical Control Characteristics-Hysteresis | <15% |
| Typical Control Characteristics-Repeatability | <1% F.S. |
| Typical Control Characteristics-Control Ratio | 1:100 |
| Typical Control Characteristics-Response Time (10-90%) | <25ms |
| Burst Pressure | 250bar |
| Pressure Range | 110bar |
| Operating Voltage | 12VDC, 24VDC |
| Ambient Temperature | -40°C to +90°C (EPDM), -10°C to +90°C (FKM) |
| Maximum Operating Pressure | 100% ED |
| PWM Frequency | 300-400Hz |
| Medium | Neutral gases |
| Medium | liquids |
| Medium Temperature | -40°C to +90°C (EPDM), -10°C to +90°C (FKM) |
| Medium Viscosity | Max 21mm²/s (21cSt) |

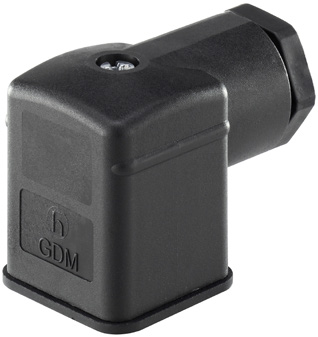

| Electrical Connection | DIN EN 175301-803 A |
| Protection Class | IP65, IP69K |
| Automotive Cable | KOSTAL MLK1.2, TE MCON 1.2, 2-pin, Code A (male) |
| Pipeline Interface | G1/4, G1/2, NPT1/4, NPT1/2 |
