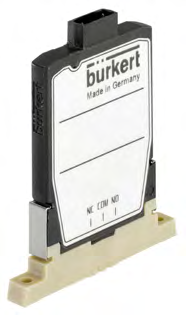

6650 Type Solenoid Valve
The 6650 Type solenoid valve is designed with a width of 4.5 mm, featuring a medium isolation function suitable for corrosive media. It offers direct operation, vacuum resistance up to 7 bar, and a short response time.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Valve Width | 4.5mm |
| Material | PEEK |
| Sealing | FFKM (Simriz) |
| Internal Volume | 30μl |
| Fluid Volume | 37μl |
| Orifice | DN0.4 and DN0.8 |
| Response Time | <5ms |
| Operating Voltage | 24VDC (12V optional) |
| Nominal Power | 5.7W |
| Holding Power | 0.7W |
| Ambient Temperature | +15°C to +50°C |
| Medium Temperature | +10°C to +50°C |
| Protection Rating | IP65 |
| Installation Position | Any |
| Installation Position | electromagnetic compatibility consistent |
| Electrical Connection | 2504 Type electrical interface |
| Certification and compliance | Corrosion resistance |
| Frequency | 15Hz |
| Switching Frequency | 80Hz |
| Duty Cycle | Continuous operation, 100% duty cycle |
| Pipeline Interface | Corrosion resistance |
| Drive Mode | Direct |
| Circuit Function | WW A (two-way normally closed solenoid valve) |
| Order Number | 182284 (DN0.4), 226664 (DN0.8) |
