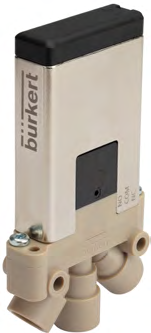

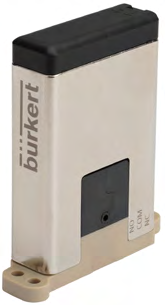

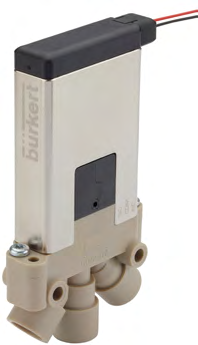

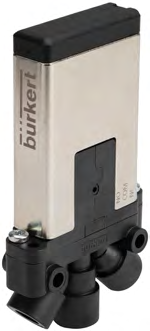

6757 Whisper Valve
The 6757 Whisper Valve is a compact and efficient solenoid valve designed for fluid control applications. It features low noise operation, high pressure resistance, and chemical compatibility, making it ideal for precise fluid handling.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 18×69mm |
| Materials | FFKM |
| Materials | EPDM |
| Materials | FKM |
| Materials | PEEK |
| Materials | PPS |
| Internal Volume | 550μl |
| Nominal Diameter | DN1.4, DN4.0 |
| Pressure Range | Vacuum to 16bar |
| Duty Cycle | 100% ED |
| Switching Noise | <45dB(A) |
| Switching Time | 7ms (pressure range 0 to 10%) |
| Electrical Connection | 2505 cable plug |
| Voltage | 12VDC, 24VDC |
| Voltage Power | 12V: 5.0W, 24V: 4.5W |
| Medium Temperature | FFKM: +15°C to +50°C, FKM: 0°C to +50°C, EPDM: 0°C to +50°C |
| Flow Characteristics-Kv Value (Water) | 0.055 to 0.330m³/h |
| Flow Characteristics-Cv Value (Water) | 0.064 to 0.382gpm |
| Flow Characteristics-Q Value (Air) | 60 to 405l/min |
| Protection Class | IP30 |
| Certification | FDA, EN 60529 |
| Ambient Temperature | 0°C to +50°C |
| Connection Type | G⅛, G¼ |
