7017 Type Solenoid Valve
The 7017 Type solenoid valve is a two-position, three-way valve with isolation functionality, designed for precise dosing, mixing, and distribution of neutral or aggressive fluids and gases. It is suitable for applications requiring high chemical resistance and pressure tightness.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 6 |
| Material | FKM |
| Material | EPDM |
| Material | PPS |

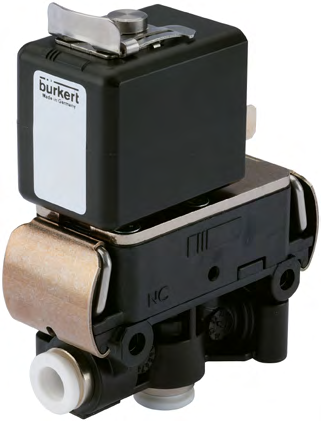

| Push-in Version Weight | 154g |

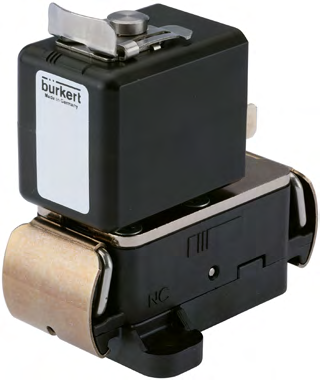

| Flange Version Weight | 140g |
| Circuit Function | T (Universal) |
| Coil Insulation Class | H |
| Switching Time | 25ms |
| Duty Cycle | 50% ED/2 minutes |
| Operating Voltage | 24V DC |
| Power Consumption | 11W |
| Medium Parameters | Neutral and aggressive fluids and gases |
| Medium Temperature | +5°C to +80°C |
| Medium Flow Rate | Max 21mm/s |
| Connection Type | Push-in connection (6.3x0.8) |
| Pipe connection | Soft tubing (6mm) |
| Protection Class | IP20 |
| Installation Position | Any |
| Installation Position | recommended upright |
| Ambient Temperature | Max +65°C |
| Pipe Diameter | 3mm |
| Certifications and Compliance | NSF/ANSI 169, FDA, USP, EC 1935/2004 |
| Coil Dimensions | 24.5mm |
