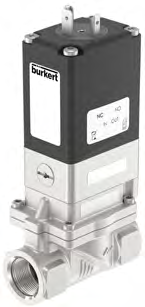

Type 6282 Servo-assisted 2/2-way diaphragm valve
The Type 6282 is a servo-assisted diaphragm valve designed for handling contaminated or particulate-laden media, aggressive or corrosive fluids, and critical applications requiring explosion-proof standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Seal Material | NBR |
| Seal Material | EPDM |
| Seal Material | FKM |
| Pilot Valve Housing Material | PPS |
| Pilot Valve Housing Material | brass |
| Pilot Valve Housing Material | stainless steel |
| Body Material | Brass |
| Body Material | stainless steel |
| Coil Material | Epoxy |
| Internal Valve Parts Material | PPS |
| Internal Valve Parts Material | stainless steel |
| Internal Valve Parts Material | brass |
| Orifice | DN13...DN50 |
| Pressure Range | 0.2...10bar (PPS body), 0.2...12bar (brass/stainless steel body with FKM seal), 0.2...16bar (brass/stainless steel body with NBR/EPDM seal) |
| Circuit Function | A and B |
| Thermal Insulation Class | Epoxy coil class H |
| Duty Cycle | 100% continuous operation |
| Switching Frequency | Max. 20/min (up to +70°C), Max. 5/min (up to +90°C for explosion-proof variant) |
| Switching Time | Opening: 0.1...0.8s, Closing: 1.0...4.0s |
| Operating Voltage | 24VDC, 24VAC 50Hz, 230VAC 50Hz |
| Power Consumption Standard 8W Coil | AC: Inrush 30VA, Hold 15VA/8W; DC: Cold 11W, Warm 8W |
| Power Consumption Standard 5W Coil | AC: Inrush 22VA, Hold 12VA/5W; DC: Cold 6W, Warm 5W |
| Power Consumption Impulse Coil | AC/DC: Inrush 40W, Hold 11W |
| Power Consumption Explosion-proof Variant | AC/DC: Inrush 40W, Hold 3W |
| Operating Medium | Neutral and slightly aggressive gaseous and liquid media |
| Medium Temperature | NBR: 0°C...+80°C, EPDM: -25°C...+90°C, FKM: 0°C...+90°C |
| Viscosity | Max. 21mm²/s (21cSt) |
| Installation Position | As required |
| Installation Position | preferably with actuator upright |
| Ambient Temperature | Max. +55°C |
| Degree of Protection | IP65 with cable plug or terminal box |
