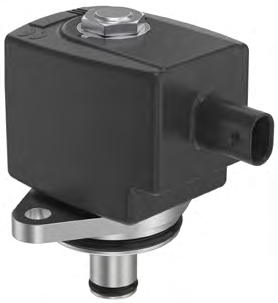

Type 6440 Solenoid Valve
The Type 6440 solenoid valve is designed for fuel shut-off applications in combustion systems, ensuring safety and reliability. It features high resistance to pressure and temperature, making it suitable for automotive and industrial use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | EPDM, Stainless Steel 1.4404/316L |
| Sealing | EPDM |
| Leakage | 1×10⁴mbarl/s (>1.5bar differential pressure) |
| External Leakage | 1×10⁴mbarl/s |
| Pressure Rating | DN6/DN8: PN40bar, DN12/DN16: PN25bar |
| Burst pressure | DN6/DN8 >250bar, DN12/DN16 >125bar |
| Nominal Diameter | DN6, DN8, DN12, DN16 |
| Circuit Function | A |
| Ambient Temperature | -40°C to +90°C |
| Duty Cycle | 100% ED |
| Switching Time | DN6/DN8: 10-20ms, DN12/DN16: 20-30ms |
| Voltage Range | 12V: 9-16V, 24V: 18-32V |
| Fixed Application | DIN EN 175301-803 standard |
| Medium | Neutral gases |
| Medium | optimized for air |
| Medium Temperature | -40°C to +90°C |
| Viscosity | Max 21mm²/s (21cSt) |
| Connection Type | Threaded, Plug-in, Baseplate |
| Protection Class | IP65, IP6K9K |
| Dimensions | Refer to technical drawings |
| Power | 12W (DC), 44W (Kick and Drop) |
| Certifications | ATEX |
| Certifications | IECEx |
| Certifications | UL |
| Certifications | CSA |
| Mounting Bracket | Available for DN12 applications |
