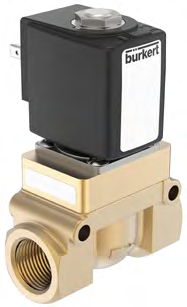

5404型伺服辅助式二位二通活塞阀
The 5404 servo-assisted piston valve is designed for controlling liquids and gases, offering NC and NO versions with low-pressure requirements. It features Kick and Drop electronics for reduced energy consumption and is compatible with DIN EN 175301-803 connectors.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Sealing Material | PTFE/FKM, PTFE/EPDM |
| Body Material | Brass |
| Body Material | Stainless Steel |
| Circuit Function | A and B |
| Solenoid Coil Class | H |
| Switching Time | DN12-DN25: Open: 20...400ms, Close: 100...1500ms; DN32-DN50: Open: 200...1500ms, Close: 1000...3000ms |
| Operating Voltage | 24VDC, 24V50Hz, 110V50Hz, 120V60Hz, 230V50Hz, 240V60Hz |
| Power Consumption | AC: 24VA, DC: 9W |
| Protection Class | IP65 |
| Medium Temperature | -10°C to +120°C |
| Ambient Temperature | -10°C to +55°C |
| Viscosity | Max. 21mm²/s |
| Connection Type | G |
| Connection Type | Rc |
| Connection Type | NPT |
| Pipe connection | DN12, DN25, DN32, DN50 |
| Pressure Range | 1...25bar (liquid), 1...32bar (gas) |
| Flow Coefficient | DN12: 2.0m³/h, DN25: 10.0m³/h, DN32: 18.0m³/h, DN50: 36.0m³/h |
