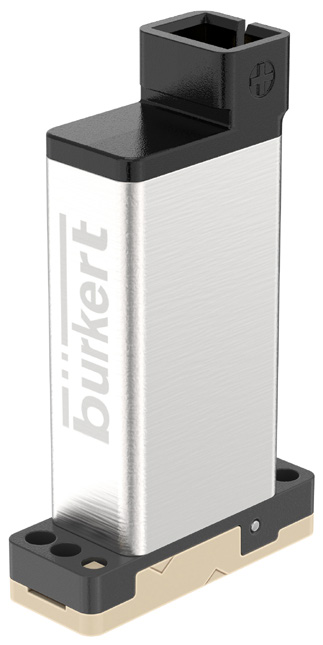

6732 Whisper Valve
The 6732 Whisper Valve is designed for precise fluid control with minimal internal volume, making it ideal for applications requiring high cleanliness and efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 15.2x18.2x7mm |
| Material | FFKM |
| Material | EPDM |
| Material | PEEK |
| Material | PPS |
| Sealing | FFKM |
| Sealing | EPDM |
| Fluid Volume | Approx. 1.2μl |
| Internal Volume | Approx. 6.5μl |
| Nominal Diameter | DN0.8 |
| Circuit Function | A |
| Service Life | 30 million switching cycles |
| Pressure Range | Up to 3bar (relative pressure: 200mbar) |
| Outlet Pressure | 0 to 1.2bar |
| Duty Cycle | 100% ED |
| Switching Time | <8ms (A) |
| Switching Time Pressure Increase | 19ms (pressure increase 0 to 10%) |
| Switching Time Pressure Decrease | 3ms (pressure decrease 100% to 90%) |
| Operating Voltage | 12VDC, 24VDC |
| Current Consumption | <100mA |
| Voltage Tolerance | ±5% |
| Flow Rate | Max. 21mm³/s |

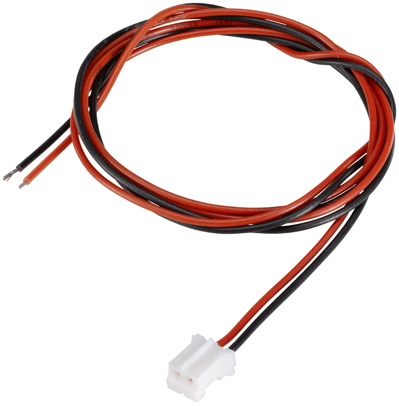

| Connection Type | 2503 cable plug |
| Protection Class | IP10 |
| Food and Beverage/Hygiene Certification | FDA |
| Food and Beverage/Hygiene Certification | USP |
| Ambient Temperature | +15°C to +55°C |
| Ambient Humidity | Any |
| Ambient Humidity | without condensation |
