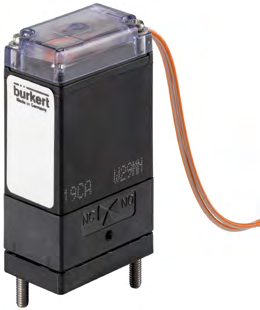

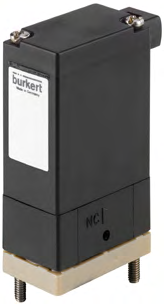

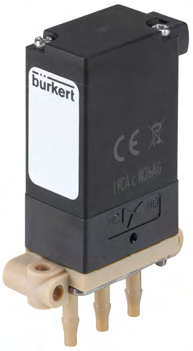

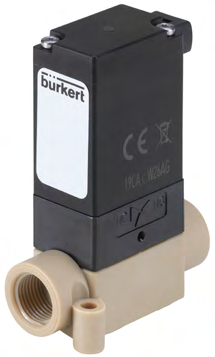

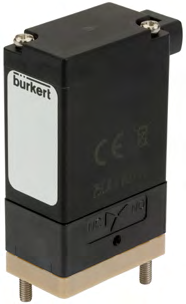

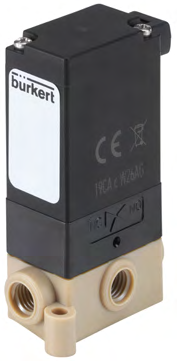

Type 0127 Solenoid Valve
The Type 0127 solenoid valve is a compact and high-performance valve designed for laboratory, medical analysis, and industrial applications. It features a modular design, chemical resistance, and high precision.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Width: 16mm |
| Material | FFKM |
| Material | FKM |
| Material | EPDM |
| Material | PEEK |
| Material | PPS |
| Material | PVDF |
| Sealing | FFKM |
| Sealing | FKM |
| Sealing | EPDM |
| Internal Volume | 44μl (Base Mount), 35μl (Plug-in Connection), 25μl (UNF 1/4-28) |
| Nominal Diameter | DN 0.8-DN 1.6 |
| Duty Cycle | 100% ED |
| Switching Time | Opening: 25ms, Closing: 25ms |
| Electrical Parameters | 12V DC, 24V DC, 24V UC |
| Power Consumption | 3.4W |
| Medium Pressure | 0-6bar |
| Medium Temperature | -10°C to +55°C |
| Flow Rate | Up to 21ml/min |
| Connection Type | 1054 plug-in connection, 2505 cable plug |
| Protection Class | IP65 (1054 plug-in connection), IP30 (2505 cable plug) |
| Food and Beverage Hygiene | FDA |
| Food and Beverage Hygiene | USP |
| Ambient Temperature | Up to +55°C |
