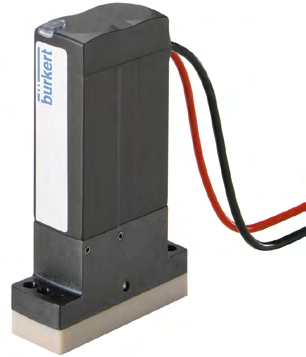

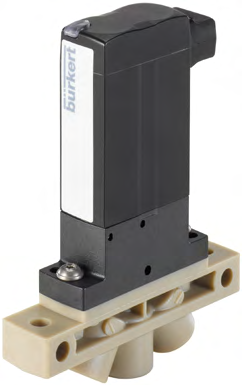

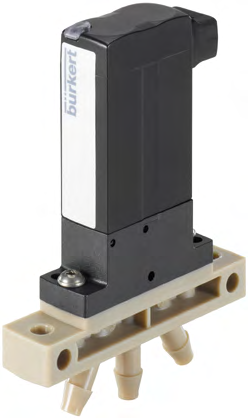

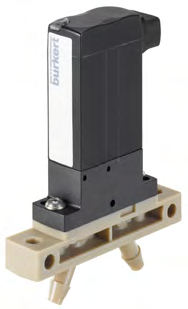

6624 Type Twin Power Solenoid Valve
The 6624 Type Twin Power Solenoid Valve is designed to meet the highest chemical resistance requirements. It features a compact design with a width of only 10.3 mm, utilizing Burkert TwinPower actuator technology. The valve offers high-pressure sealing and excellent washability, making it ideal for demanding applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | FFKM |
| Material | FKM |
| Material | EPDM |
| Material | PEEK |
| Material | PPS |
| Internal Volume | 110μl (Burkert), 115μl (UNF 1/4英寸-28) |
| Shuttle Volume and Small Bending Radius | 8mm |
| Nominal Diameter | DN0.8 (5bar), DN1.6 (2bar) |
| Circuit Function | A |
| Circuit Function | B |
| Circuit Function | T |
| Switching Time | 10ms (pressure increase 0...10%), 13ms (pressure decrease 100...90%) |
| Operating Voltage | 12VDC, 24VDC |
| Power Consumption | 1W (internal power reduction), 4W |
| Switching Frequency | ≤5Hz |
| Voltage Tolerance | 12VDC±10%, 24VDC±10% |
| Medium Temperature | FFKM: -10...+55°C, FKM: -10...+55°C (DN0.8), EPDM: -10...+55°C (DN1.6) |
| Ultrasonic Method | Maximum 21mm/s |
| Connection Method | PFA cable, AWG20, 300mm |
| Pipeline Interface | Burkert法兰型式 (10x30mm), UNF1/4英寸-28 |
| Protection Level | IP40 (with cable), IP30 (with 2505 type plug) |
| Ambient Temperature | FFKM: -10...+55°C, FKM: -10...+55°C (DN0.8), EPDM: -10...+55°C (DN1.6) |
