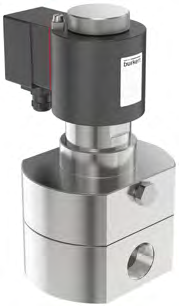

Type 6481 Servo-assisted Two-way Valve
The Type 6481 valve is designed for gas applications, offering high-pressure resistance up to 450 bar and compatibility with ATEX and IECEx standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Size | DN12, DN25, DN40, DN50 |
| Material | PTFE/FKM, PTFE/EPDM, PEEK/PTFE |
| Valve Body | Stainless Steel 1.4404/316L |
| Sealing Performance | 2×10^-3mbar/s at 20 bar, 5×10^-5mbar/s at pressure ≤5×10^-5mbar/s |
| Maximum Switching Cycles (Reference Value) | 100,000 cycles at Δp=100-200 bar |
| Maximum Switching Cycles (Service) | 250,000 cycles at Δp=100-200 bar (1 year) |
| Pressure Rating | PN450 bar for DN12 and DN25, PN330 bar for DN40 and DN50 |
| Electrical Connection | M16x1.5 |
| Protection Class | IP65 according to DIN 60529 |
| Working Medium | Gas |
| Working Temperature | -27°C to +80°C |
| Ambient Temperature | -27°C to +50°C |
| Viscosity | Max 22mm²/s (22cSt) |
| Electrical Voltage | 24VDC, 24V50Hz, 24V60Hz, 120V60Hz, 230V50Hz |
| Power Consumption | 46W (standard), 30W (ATEX) |
| Certification | ATEX |
| Certification | IECEx |
| Connection Type | G 3/8, G 1, G 1 1/2, G 2 |
| Function | 100% ED |
| Sealing Material | PTFE/FKM, PTFE/EPDM, PEEK/PTFE |
| Kv Value | 3.3m³/h for G 3/8, 13.0m³/h for G 1, 24.0m³/h for G 1 1/2, 32.0m³/h for G 2 |
| Pressure Range | 1-450 bar for G 3/8 and G 1, 1-330 bar for G 1 1/2 and G 2 |
