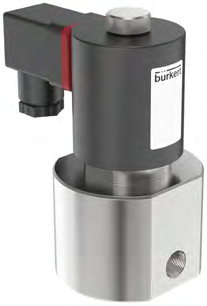

6080 Type Direct-acting Solenoid Valve
The 6080 type solenoid valve is designed for gas applications, offering high pressure resistance and reliable sealing performance. It is suitable for use in explosive environments and certified for ATEX and IECEx standards.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 5, page 5 |
| Sealing Material | PCTFE/PTFE |
| Valve Body | Stainless Steel 1.4404/316L |
| Coil | Epoxy resin |
| Internal Leakage Rate | At 20bar ≤2×10^-3mbar/s, under public pressure ≤5×10^-5mbar/s |
| Maximum Switching Cycles | At Δp=100-200bar approximately 50,000 cycles |
| Maximum Total Switching Cycles | At Δp=100-200bar approximately 100,000 cycles (1 year) |
| Pressure Resistance | PN 900bar |
| Pressure Range | 0-900bar |
| Nominal Diameter | WW A: DN 0.5 and DN 0.7 |
| Insulation Class | H |
| Signal Frequency | 100% ED |
| Electrical Power | 24VDC, 24V50Hz, 24V60Hz, 120V60Hz, 230V50Hz |
| Power Loss | 10% |
| Ambient Temperature | WWA: -20°C to +50°C |
| Viscosity | Max 22mm²/s (22cSt) |
| Connection Method | Electrical connection according to DIN 43650, ATEX connection M16x1.5 |
| Pipeline Interface | G 1/4 |
| Protection Level | IP65 according to DIN 60529 |
| Installation Position | Horizontal |
| Cooling Power | 24W |
| Certification | ATEX and IECEx standards for explosive environments |
| Standards | 2014/68/EU IV class, 2006/42/EG |
| Explosion Protection Level | II 3G Ex ec IIC T3 Gc, II 3D Ex mb IIIB T155°C Db |
