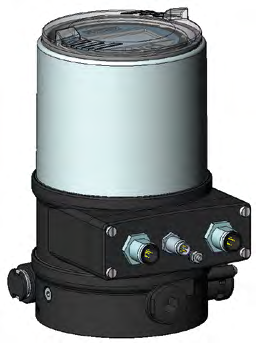

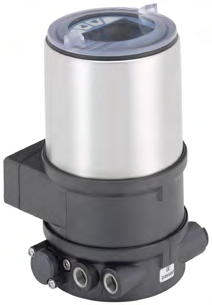

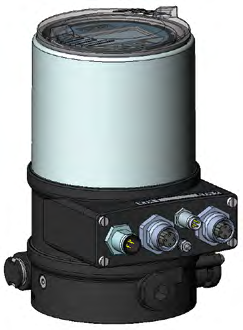

Type 8693 Digital Electropneumatic Process Controller

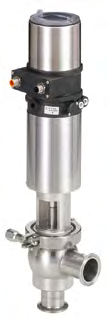

The Type 8693 digital electropneumatic process controller is designed for integrated mounting on process control valves, offering robust stainless steel construction, contact-free position sensing, and compatibility with various communication protocols.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Body Material | PPS |
| Body Material | stainless steel |
| Seal Material | EPDM |
| Cover material | PC |
| Display | Graphic display with backlight |
| Operating Keys | Membrane keypad with 4 keys |
| Service Interface | Connection to PC via USB büS interface set |
| Configuration Tool | Burkert Communicator |
| Initialisation Function | Automatically by P.TUNE function |
| Manual Operation | Push-button on control panel |
| Status Display | LEDs (colors according to NAMUR) |
| Communication Protocols | EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1, büS |
| Measurement Principle | Linear: inductive, Rotary: magnetic |
| Position Detection Mode | Contactless analogue position sensor |
| Stroke Range | Linear: 3...45mm, Rotary: 30...180° |
| Operating Voltage | 24V DC ±10% |
| Residual Ripple | 10%, no technical DC voltage |
| Power Consumption | ≤5W |
| Protection Class | III according to DIN EN 61140 |
| Digital Input | 1 digital input, 0...5V log.0°, 10...30V log.1° |
| Digital Output | 2 digital outputs (optional), galvanically isolated |
| Analogue Output | 1 output (optional), 0/4...20mA, 0...5/10V |
| Set-point Signal | 0/4...20mA, 0...5/10V |
| Input Resistance | 0/4...20mA, 180Ω; 0...5/10V, 1kΩ |
| Frequency Setting | 17kΩ input resistance, 0...1000Hz |
| Pt100 Setting | -20...+220°C, resolution <0.1°C |
| Control Medium | Neutral gases, air, quality class according to ISO 8573-1 |
| Dust Content | Class 7 (particle size <40μm) |
| Particle Density | Class 5 (<10mg/m³) |
| Pressure Dew Point | Class 3 (-20°C or min. 10°C below the lowest operating temperature) |
| Oil Content | Class X (<25mg/m³) |
| Air Intake Filter | Exchangeable, mesh size approx. 0.1mm |
| Supply Pressure | Low air flow rate: 0...7bar, High air flow rate: 3...7bar |
| Single-acting Air Flow Rate | 130l/min |
| Double-acting Air Flow Rate | 7l/min |
| Ambient Temperature | -10...+55°C |
| Degree of Protection | IP65/IP67 |
| Operating Altitude | Up to 2000m above sea level |
