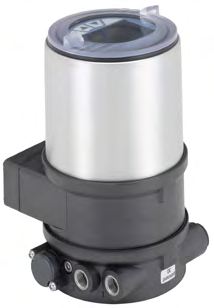

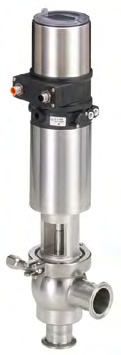

8692 Type Digital Electro-Pneumatic Positioner
Compact and durable stainless steel design, suitable for integration into process control valves.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to section 6 for details |
| Material | PPS |
| Material | Stainless Steel |
| Protective Component | PC |
| Operation Display | Illuminated display with 4 buttons |
| Operation Interface | USB interface for PC connection |
| Configuration Tools | Burkert Communicator software |
| Debugging Function | Automatic X.TUNE adjustment |
| Signal Indicator | LED (NAMUR standard) |
| Communication Interface | EtherNet/IP, PROFINET, Modbus TCP, PROFIBUS DP-V1, Burkert bus (CANopen) |
| Position Sensor | Contactless |
| Position Sensor | electric |
| Position Measurement Module | Contactless magnetic module |
| Stroke Angle | 30° to 180° |
| Electrical Parameters-Operating Voltage | 24V DC ±10% |
| Electrical Parameters-Power Consumption | ≤5W |
| Electrical Parameters-Current Protection | III per DIN EN 61140 (VDE 0140-1) |
| Input Signal-Digital Input | 0 to 5V=log '0', 10 to 30V=log '1' |
| Input Signal-Digital Output | 100mA |
| Input Signal-Analog Input | 0/4 to 20mA, 0 to 5/10V |
| Setpoint Input | 0/4 to 20mA, 0 to 5/10V |
| Electrical Connection | M12, 8-pin and 4-pin connectors |
| Control Medium | Neutral gases |
| Control Medium | air |
| Control Medium-Particle Diameter | ≤40μm |
| Control Medium-Oil Content | ≤1mg/m³ |
| Control Medium-Water Content | ≤25mg/m³ |
| Supply Pressure | 0 to 7bar |
| Control Interface | G1/4 stainless steel |
| Low Flow | 7L/min |
| High Flow | 130L/min |
| Explosion Protection | II 3D Ex tc IIIC T135°C Dc |
| Operating Conditions-Temperature | -10°C to +55°C |
| Operating Conditions-Protection Level | IP65/IP67 per EN 60529 |
| Operating Conditions-Installation Height | ≤2000m |
