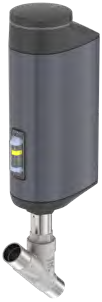

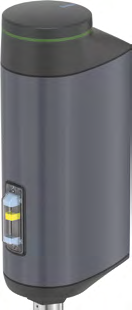

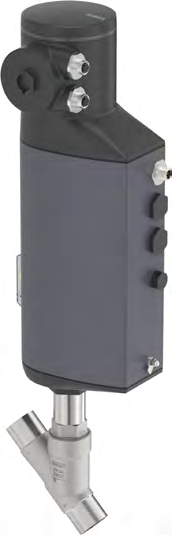

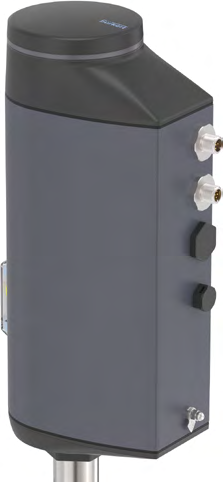

Electromotive 2/2 Way Angle Seat Valve Type 3320
The Electromotive 2/2 Way Angle Seat Valve Type 3320 is designed for demanding shut-off tasks under various operating conditions. It features a hygienic design, rapid flow shut-off, and versatile diagnostic options.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to chapter 4 |
| Material | Refer to chapter 3 |
| Design | Angle seat on/off valve |
| Nominal Diameter (Port Connection) | DN15...DN80, NPS ½...3 |

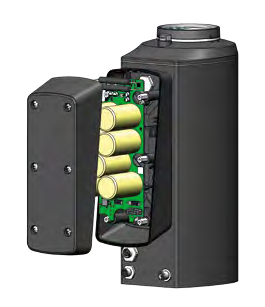

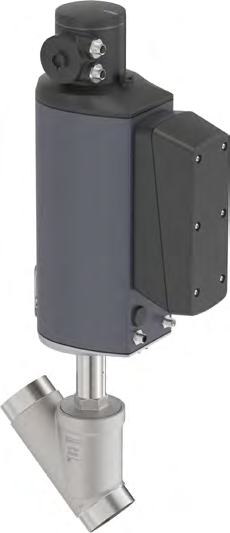

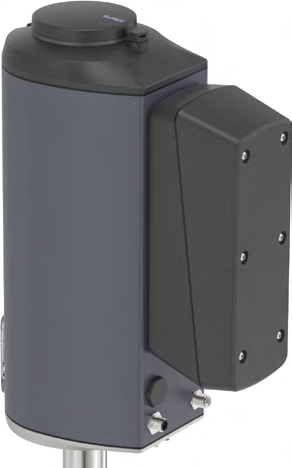

| Safety Position (In Case of Power Failure) | With energy storage SAFEPOS energy-pack: open, closed or freely programmable position |
| Flow Direction | Against closing direction (below seat) |
| Weight | AG2: 5.5kg, AG3: 16kg |
| Operating Pressure | 0...25bar(g), Vacuum variant: -0.9bar(g) |
| Nominal Pressure | PN25 (DIN EN 1333), Class 150 (DIN EN 1759) |
| Seat Leakage | Leakage rate A (DIN EN 12266-1), seat seal PTFE and PEEK, test medium air |
| Kv Value | 0.5...140m³/h |
| Closing Time | AG2: 2.3...6s, AG3: 8.7s |
| Travel Speed | 6mm/s (for AG2 actuator force 1300N), 4mm/s (for AG2 actuator force 2500N), 3mm/s (for AG3 actuator force 7700N and 10000N) |
| Operating Voltage | 24V DC ±10% |
| Operating Current | AG2: max 3A, AG3: max 5A |
| Protection Class | IP65/IP67 (DIN EN 60529), NEMA 4X |
| Duty Cycle | 100% |
| Standby Consumption | 2...4W |
| Standard Signal (Binary) | 0...5V (log_0"), 10...30V (log_1") |
| Fieldbus (Digital) | Bürkert system bus (büS) (standard), CANopen (optional), EtherNet/IP, PROFINET, Modbus TCP, EtherCAT (optional via integrated gateway) |
| Operating Medium | Steam, neutral gases, water, alcohols, oils, fuels, hydraulic fluids, salt solutions, lyes, organic solvents, oxygen (optional) |
| Medium Temperature | -40...+230°C |
| Viscosity | Up to 600mm²/s |
| Port Connection | Threaded |
| Port Connection | welded |
| Port Connection | clamp connections |
| Ambient Temperature | -25...+65°C |
| Installation Position | Any |
| Installation Position | preferably with actuator upright |
