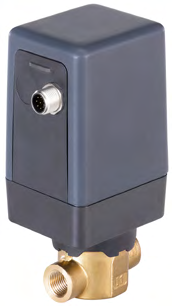

3280 Type Electric Two-Way Seat Valve
The 3280 type electric two-way seat valve is designed for precise control of liquid and gas flow in pipelines. It features a compact design, fast response time, and high-pressure capabilities, making it suitable for various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Nominal Diameter | DN8-DN15, NPS 1/4, 3/8, 1/2 |
| Operation | Linear motion |
| Design Type | Two-way seat valve |
| Weight | 0.7kg |
| Control Accuracy | ±0.5% |
| Closing Time | 2.5s |
| Pressure Range | 0-6bar (standard), 0-22bar (high pressure version) |
| Duty Cycle | 100% |
| Kv Value | 0.03-1.9m³/h |
| Operating Voltage | 24V DC |
| Power Consumption | 8W (DN1 to DN6), 12W (DN8 and DN10, high-pressure version) |
| Medium Temperature | -30°C to +70°C (EPDM), 0°C to +70°C (FKM, NBR) |
| Viscosity | Max 600mm²/s |
| Connection Interface | G (EN ISO 228-1), NPT (ASME B1.20.1), Flange version |
| Communication Interface | Digital input: 0-5V, 4-20mA, 0-10V, bus/EDIP |
| Protection Level | IP54 |
| Certification | UL, FDA, O2 compatibility |
| Materials | PC, PPS, FKM, EPDM, NBR, Stainless Steel 1.4305, AISI 316L |
| Dimensions | Refer to technical drawings for threaded, flange, and plug-in versions |
