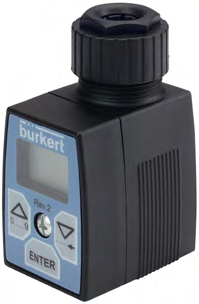

8605 Type PWM Control Electronics
The 8605 type PWM control electronics is designed for controlling proportional solenoid valves with a current range of 40 to 2000mA. It converts analog input signals into PWM output signals, enabling precise control of valve opening and closing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 45×41.5×24mm |
| Material | PC/PBT |
| Electrical Connection Plug | PG or M12 plug, 4 or 5 pins |
| Ramp Function | Adjustable from 0 to 10s |
| PWM Signal Frequency | 80Hz to 6kHz |
| Operating Voltage | 12-24VDC |
| Output Current | Max 2A |
| Input Impedance | >20kΩ |
| Analog Signal | 0-20mA, 4-20mA, 0-5V, 0-10V |
| Power Consumption | Approx. 1W |
| Ambient Temperature | -10°C to +60°C |
| Protection Class | IP65 (M12 version), IP40 (PG version) |
