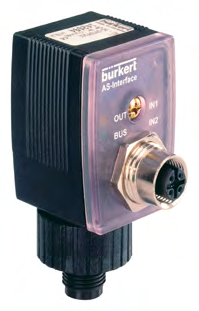

Type 2511 Cable Plug Form A
The Type 2511 ASI cable plug is a robust and efficient solution for connecting binary elements like valves to the AS-Interface. It features a polyamide body with integrated slave electronics and connector configuration compliant with DIN EN175301-803 Form A. The plug ensures quick installation, simple commissioning, and error identification with LED status display.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Body Material | Polyamide |
| Cover Material | Polysulphone |
| Cover Material | grey transparent |
| Contact Material | Galvanised silver-plated brass |
| Cable Diameter | 6...7mm |
| Control LED | Green (24V model only) |
| Max Cross Section Area | 1.5mm² |
| Number of Pins | 2-pin (24V model), 3-pin (110...230V model) |
| Timeout between two switch-on processes | Min. 1s |
| Contact Distance | 18mm according to DIN EN175301-803 Form A |
| Switching Frequency | Max. 10/min |
| Switching Point Detection | AC: yes, DC: yes (24V model only) |
| Overexcitation Time | AC: 400ms, DC: variable |
| Input Power | Max. 72W |
| Operating Voltage | 24V AC/DC (24V model), 110/230V AC/DC (110...230V model) |
| Duty Cycle | Max. 10/min |
| Holding Power | 4W |
| Electrical Connection | 2-pin terminal strip (24V model), 3-pin terminal strip (110...230V model) |
| Degree of Protection | IP65 |
| Ambient Temperature | -10°C...+55°C |
| PE Protective Conductor Contact | No (24V model), Yes (110...230V model) |
