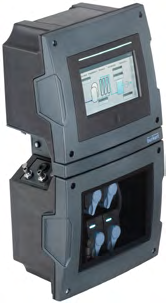

Type 8905 Online Water Analysis System
The Type 8905 online water analysis system is a compact and modular system for monitoring all important water parameters on one platform. It is a multi-channel measuring system for Bürkert sensor cubes, based on the compact housing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Material | Non-wetted parts: PC (glass fibre reinforced, UV stabilized, UL94 V0, anthracite grey), PC (black, UV stabilized, UL94 V0) and glass; Wetted parts: Biopolymer (EPDM seals) |
| Display | 780x460 pixels resolution, Capacitive 7'' Touchscreen, backlit |
| Dimensions | 280x186x497mm |
| Weight | Approx. 8kg (fully equipped with 1x100...240VAC power supply module + 1xHMIU module + 5 sensor cubes); Up to 12kg (if totally equipped) |
| Data Logger | Integrated Micro SD, 2GB; adjustable logging interval; external reading via USB or LAN port |
| Operating Voltage | 100...240VAC 50/60Hz (current consumption at 100VAC: 0.8A, at 240VAC: 0.8A); 20...30VDC ±10% tolerance |
| Power Consumption | Max. 96VA |
| Fluid | Water without particles: drinking water, industrial water |
| Fluid pH Range | pH4...pH9 |
| Fluid Conductivity | >50μS/cm (if no pH sensor cube); >100μS/cm (if one pH sensor cube) |
| Temperature of the Fluid Sample | 3°C...40°C (37°F...104°F) |
| Pressure of the Fluid Sample | See data sheets of the sensor cubes and accessories |
| Flow Rate of the Fluid Sample | Min. flow rate: 6l/h per installed sensor module; Max. flow rate: 6+6+6=18l/h (due to parallel installation) |
| Sensor Cube | Max. 6 internal sensor cubes, Max. 2 measurement water; Max. connection of 30 external sensor cubes via Bürkert-Systembus (büS); Max. büS length: 100m (without T-connections) |
| Installation | Wall mount unit, click system with wall-mounting bracket |
| Ambient Temperature | Operation: 0°C...40°C (-4°F...104°F); Storage: -20°C...70°C (-4°F...140°F) |
| Relative Air Humidity | <95%, without condensation |
| Height Above Sea Level | Max. 2000m |
| Operating Condition | Continuous |
| Equipment Mobility | Fixed |
| Application Area | Indoor |
| Degree of Protection According to IEC/EN 60529 | IP65 with closed and tight housings |
| Installation Category | With an AC switched-mode power supply: category II, according to UL/EN 61010-1; With a direct DC power supply: Category I, according to UL/EN 61010-1 |
| Pollution Degree | Degree 2, according to UL/EN 61010-1 with closed and tight housings |
