Type ME44 I/O Module

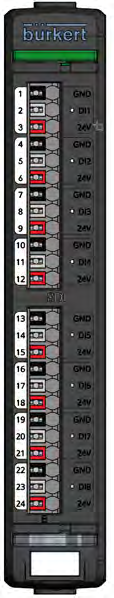

The Type ME44 I/O module is designed to extend the fieldbus gateway Type ME43, enabling the capture of sensor signals and the specification of set-point values or switching operations. It supports both analog and digital signals, offering flexibility for various industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 82.6mm×123mm×21mm |
| Weight | 0.3kg |
| Material | PC (polycarbonate) |
| Status Display | RGB LED according to NAMUR NE107, one status LED per channel |
| Ambient Temperature | -20°C...+60°C |
| Storage Temperature | -30°C...+80°C |
| Degree of Protection | IP20 according to EN 60529/IEC 60529 |
| Height Above Sea Level | Maximum 2000m |
| Configurable Input | AI as DI |
| Diagnostics | Detection of error conditions at 3.5mA and 22mA according to NAMUR NE43 |
| Safety | Reverse polarity protection, protection against overvoltage (up to at least ±30V) |
| Operating Voltage | 24V DC ±10% (via backplane BPX3) |
| Conductor Connection Cross-Section | 0.20...1.5mm²/AWG 16...24 |
| Operating Mode | 0...20mA, 4...20mA, 0...10V, 0...5V, 0...2V |
| Accuracy | ±0.1% Full Scale Range (FSR) |
| Input Impedance | Current measurement at 25°C ≤110Ω, Voltage measurement at 25°C ≤115kΩ |
| Maximum Sensor Supply | 50mA per channel |
| Maximum AUX Power Consumption | 4×50mA (for sensor supply) |
| Maximum Current of Module | 25mA |
| Galvanic Isolation | No separation between inputs |
| Galvanic Isolation | all channels have a common reference potential |
| Module Type | 4AI, 4AO, 8DI, 8DO |
| Clock Frequency | 20kHz configurable |
| Maximum AUX Power Current Consumption | 8×750mA |
| Maximum Module Current Consumption | 30mA |
