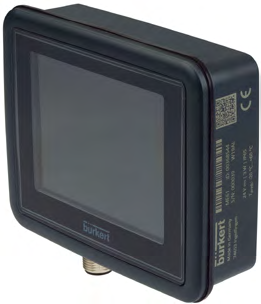

ME61 Process Display
The ME61 process display is a versatile device designed for integration into the Burkert EDIP platform, offering efficient monitoring and control of process values. It supports CANopen communication and is available in two sizes: 3.5 inches and 7 inches.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (3.5 inches) | 106x100x37.6mm |
| Dimensions (7 inches) | 198.5x144x38mm |
| Weight (3.5 inches) | 0.2kg |
| Weight (7 inches) | 0.35kg |
| Material | PC (Polycarbonate) |
| Power Supply | 24VDC±10% |
| Power Consumption | 3W |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Protection Rating | IP65, IP66, IP67, IP69K |
| Maximum Altitude | 2000m |

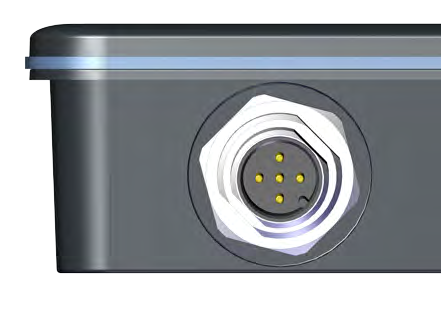

| Connection Type | M12 A-type 5-pin connector |
| Communication Protocol | Burkert bus/CANopen |
Applications
Key Features
Datasheet
