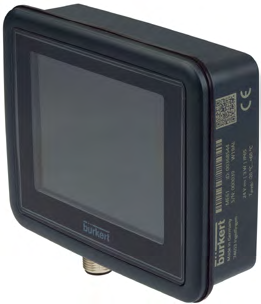

ME61 Process Display
The ME61 Process Display is a versatile display unit with bus interface (CANopen) available in 3.5-inch (8.9 cm) and 7-inch (17.8 cm) sizes. It is designed to display up to 4 or 64 process values and related status information, with touch input for parameter adjustment (7-inch model).
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions (3.5英寸) | 106x100x37.6mm |
| Dimensions (7英寸) | 198.5x144x37.6mm |
| Weight (3.5英寸) | 0.2kg |
| Weight (7英寸) | 0.35kg |
| Housing | PC (Polycarbonate) |
| Display | 可显示Equipment运行状态 and 状态标志区域 |
| Power Supply Voltage | 24VDC±10% |
| Residual Ripple | 10% |
| Power Consumption | 3W |
| Communication Protocol | Bürkert bus/CANopen |

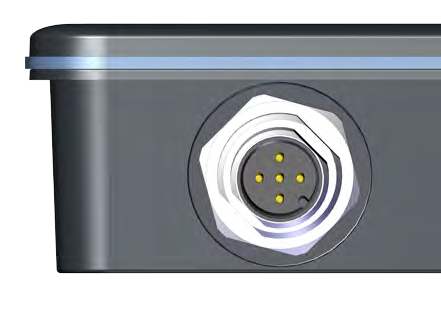

| Electrical Connection | M12 A型5针插头 |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +80°C |
| Protection Class | IP65, IP66, IP67, IP69K |
| Maximum Altitude | 2000m |
