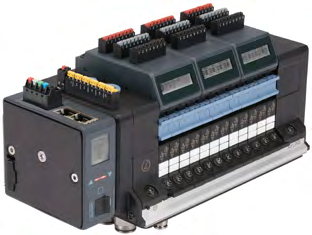

AirLINE 8652
AirLINE 8652 is a modular valve island designed for process automation, offering optimized control and monitoring capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | Refer to page 10 for details |
| Material | PA (polyamide), NBR, PUR |
| Single Valve Width | 11mm |
| Number of Valves | Max 24 |
| Circuit Function | Refer to page 7 for details |
| Pressure Range | 3-10bar |
| Flow Rate | 310l/min |
| Operating Voltage | 24VDC |
| Voltage Deviation | ±10% |
| Power Consumption | 0.7W |
| Current Consumption | 29mA |
| Total Current | Max 48DI |
| Protection Class | IP65 |
| Ambient Temperature | -20°C to +60°C |
| Storage Temperature | -10°C to +55°C |
| Connection Type | PROFIBUS DP, PROFINET IO, EtherNet/IP, Modbus TCP, EtherCAT, CANopen |
| Certifications | ATEX |
| Certifications | IECEx |
| Certifications | CCC |
| Certifications | UL |
| Installation Position | Any |
| Working Pressure Range | 3-10bar |
| Explosion Protection | Ex II 3D Ex tc IIIC Dc |
| Cable Connection | M12, RJ45 |
| Module Power | 1.5A/24VDC |
