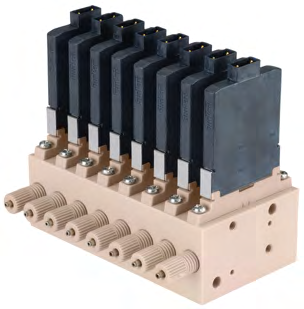

5120 Model
The 5120 model is a time-pressure dosing module designed for precise liquid dosing in laboratory and industrial applications. It features modular design, high flexibility, and compatibility with various control systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 20mm |
| Material (in contact with media) | PEEK |
| Material (in contact with media) | FFKM |
| Material (in contact with media) | ETFE |
| Sampling needle | 0.51mm or 0.95mm |
| Power Supply Voltage | 24V DC |
| Voltage Tolerance | ±5% |
| Compliant dosing volume | 5μl |
| Maximum working pressure | 3bar |
| Switching Time | 10ms |
| Minimum dose volume | 5μl |
| Fluid interface | UNF 1/4-28, flat |
| Digital Communication Interface | büs/CANopen, PROFINET, EtherNet/IP, Modbus TCP, EtherCAT |

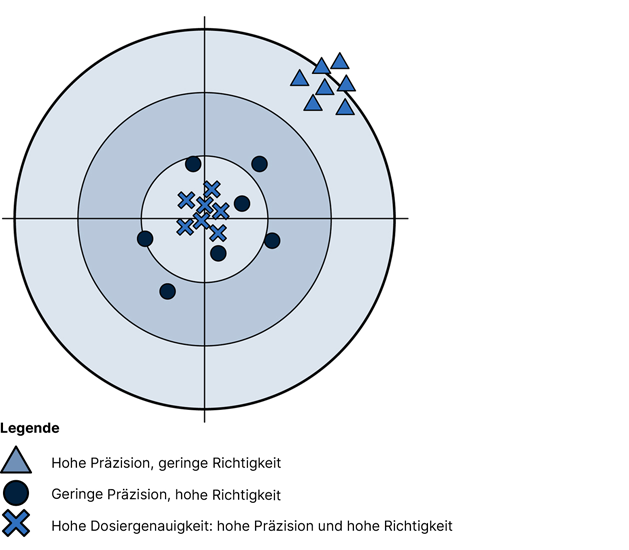

| Reference accuracy | <2% CV |
| Certification and compliance | Refer to the relevant data sheet |
