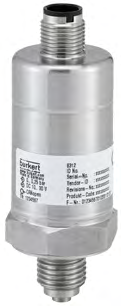

Type 8312 Pressure Transmitter with CANopen Interface
The Type 8312 pressure transmitter is designed for measuring relative or absolute pressures in liquid and gaseous media. It features a ceramic thick-film or metallic thin-film strain gauge measurement principle and offers a digital CANopen interface for precise and reliable pressure monitoring.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Housing Material | Stainless steel 1.4305 (303) |
| Process Connection | G 1/4 or NPT 1/4 (ceramic variant), G 3/4 with flush diaphragm, Clamp 1-1/2" (metallic variant) |
| Measuring Element | Ceramic Al2O3 (96%) for ceramic variant, Stainless steel 1.4435 (316L) for metallic variant |
| Seal Material | FPM (FFPM on request) for ceramic variant, None for metallic variant |
| Surface Quality | Ra<0.8μm (clamp connection) |
| Weight | 95g with process connection G1/4 |
| Measurement technology | Ceramic thick-film strain gauge, Metallic thin-film strain gauge |
| Measured quantity | Relative pressure (absolute pressure on request) |
| Measuring Range | 1...5bar or 0...0.25bar to 0...16bar selectable |
| Compensated ambient temperature range | -20...+85°C (ceramic), -40...+125°C (metallic) |
| Temperature coefficient of zero | Ceramic variant: ≤0.02%/°C typical, ≤0.04%/°C max; Metallic variant: ≤0.03%/°C typical, ≤0.05%/°C max |
| Temperature coefficient of measuring span | Ceramic variant: ≤0.02%/°C typical, ≤0.04%/°C max; Metallic variant: ≤0.03%/°C typical, ≤0.05%/°C max |
| Thermal hysteresis | Ceramic variant: ±0.4% of measuring span; Metallic variant: ±0.5% of measuring span |
| Zero offset | ≤0.3% of measuring span |
| Cycle time | 1ms |
| Measuring resolution | 12Bit |
| Measurement deviation | ≤0.5% of measuring span |
| Hysteresis | Ceramic variant: ≤0.2% of measuring span; Metallic variant: ≤0.2% of measuring span |
| Repeatability | Ceramic variant: ≤0.1% of measuring span; Metallic variant: ≤0.05% of measuring span |
| Overload limit | 3x measuring span |
| Burst pressure | 4x measuring span |
| Operating Voltage | 10...30VDC, filtered and regulated |
| Current Consumption | Approx. 45mA |
| Recommended connection cable | 5-wire shielded cable |
| Medium Temperature | Ceramic variant: -20...+85°C; Metallic variant: -40...+125°C |
| Electrical Connection | M12x1 male connector, 5-pin according to DIN IEC 60947-5-2 |
| Protocol | CiA DS 301, V4.02, CANopen slave |
| Data Transfer Rate | 20kbaud to 1Mbaud |
| Node ID | 1 to 127 |
| PDO | 0Rx, 1Tx |
| SDO | 1Rx, 1Tx |
| Emergency | Yes |
| Heartbeat | Yes |
| Node guarding | Yes |
| SYNC | Yes |
| Ambient Temperature | Operation: -20...+85°C; Storage: -40...+85°C |
| Relative Humidity | Operation: ≤100% without condensation; Storage: ≤90% without condensation |
| Protection Class | IP67 with M12 female connector screwed on |
| Mounting Position | Unrestricted |
| Calibration Position | Device upright |
| Calibration Position | process connection at the bottom |
