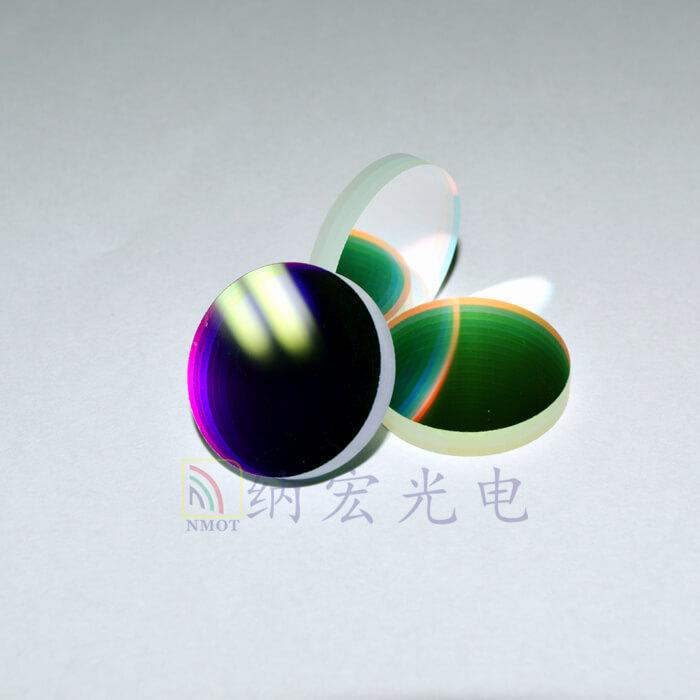

525nm Bandpass Filter
The 525nm Bandpass Filter is a high-performance optical component designed to selectively transmit light within a specific wavelength range around 525nm while blocking other wavelengths. It is ideal for applications requiring precise wavelength control and high transmission efficiency.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

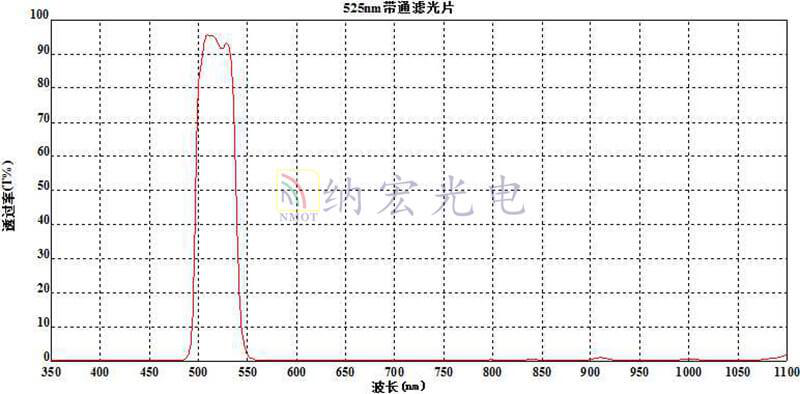

| Central Wavelength (nm) | 525 |
| Full Width at Half Maximum (FWHM) (nm) | 30 |
| Peak Transmission (%) | >90 |
| Blocking Range (nm) | 200-1100 |
| Blocking Depth (OD) | OD5 |
| Dimensions (mm) | Customizable |
| Substrate Material | Optical Glass |
| Surface Quality | 40/20 Scratch/Dig |
| Angle of Incidence (°) | 0-45 |
| Operating Temperature Range (°C) | -50 to +80 |
| Storage Temperature Range (°C) | -60 to +100 |
Applications
Key Features
Datasheet
