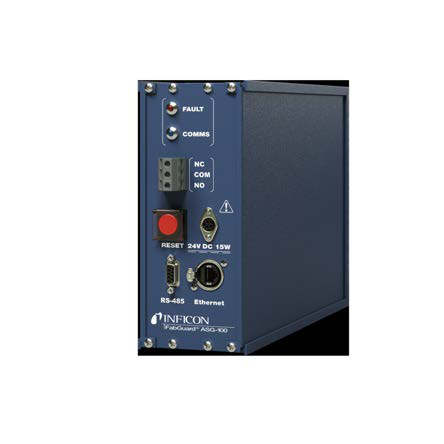

FabGuard ASG-100 Fail-to-Safe Switch
The FabGuard ASG-100 Fail-to-Safe Switch includes a fail-to-safe switch, power supply, mounting hardware, and serial communication cable for connecting to FabGuard process control software. It ensures SEMI S2 safety compliance when used with FabGuard Controllers.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fault detection window | 5 seconds |
| Fault record | Time stamp of last fault recorded in ASG-100 web server |
| Reset operation | Manual reset switch to return relay to normal operating state |
| Connection Method | Physical relay 'dry contact' output terminals, intended to connect to equipment supplying 24V (DC) |
| Power Requirement | 24V, 15W |
| Mounting Options | Options include unistrut (1-5/8') and extruded rail (M8) setups |

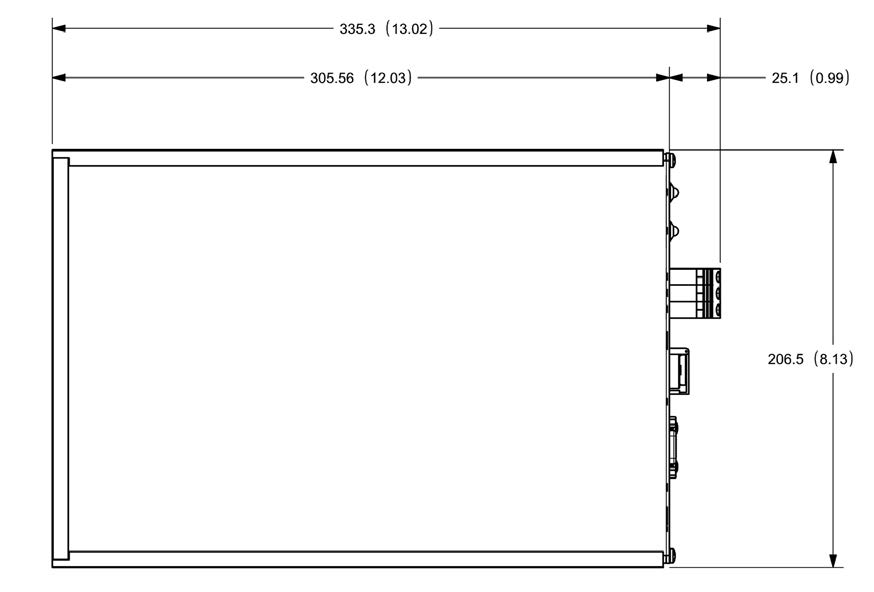

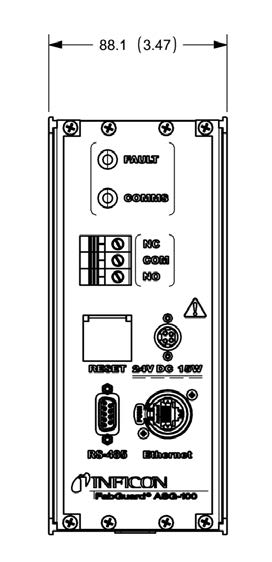

| Dimensions | 335.3mm x 88.1mm x 206.5mm (13.02in x 3.47in x 8.13in) |
| Weight | 1.63kg (3.6lb) |
| Environmental compliance | ISO 12100, EN ISO 13849-1, EN ISO 1349-2, IEC 61010-1, SEMI S2-0821, SEMI S10-1117 |
