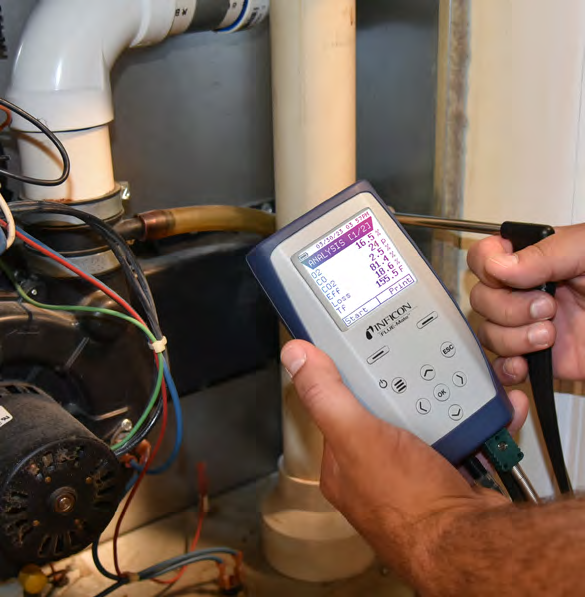

FLUE-Mate Combustion Analyzer
FLUE-Mate is an all-in-one combustion analyzer designed to enhance combustion efficiency and safety. It features an integrated manometer, thermometer, ambient CO test, cracked heat exchanger test, and draft analysis. The device offers intuitive mode selection, 15 programmable fuel selections, and a field-replaceable O2 sensor, probe, and water trap to minimize downtime.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Includes | FLUE-Mate, Flue gas probe with 5ft (1.5m) dual hose, Manometer pressure hose, Water trap, AC wall charger, Carrying case |
| Power source | Lithium-ion battery (rechargeable) |
| Battery Life | 8hours |
| Weight | 0.77lb (349g) |
| Warranty | Two-year over-the-counter |
| Compatible fuels | Natural gas, Propane, Fuel oil (#2, #4, or #6), Diesel, Wood, Coal, Bio-fuel 5%, LPG, Butane, Bagasse, B100 |
| O2 Measurement Range | 0-25.0%vol |
| O2 Resolution | 0.1%vol |
| O2 Accuracy | ±0.2%vol |
| CO Measurement Range | 0-4000ppm |
| CO Resolution | 1ppm |
| CO Accuracy | ±20ppm (0-400ppm), ±5% measured value (401-4000ppm) |
| Air Temperature Range | -40.0-248.0°F (-40.0-120.0°C) |
| Air Temperature Resolution | 0.2°F (0.1°C) |
| Air Temperature Accuracy | ±1.8°F (±1°C) |
| Flue Gas Temperature Range | -4.0-212°F (-20.0-100°C) |
| Flue Gas Temperature Resolution | 0.2°F (0.1°C) |
| Flue Gas Temperature Accuracy | ±1% measured value |
| Pressure Measurement Range | -40.0-80.0in.H2O (-100.0-800.0mm.H2O) |
| Pressure Resolution | 0.004in.H2O (0.1mm.H2O) |
| Pressure Accuracy | ±1% measured value |
| CO2 Calculated Range | 0.0-99.9%vol |
| CO2 Resolution | 0.1%vol |
| Temperature Differential Range | 32.0-1472.0°F (0.0-800.0°C) |
| Temperature Differential Resolution | 0.2°F (0.1°C) |
| Air Index Range | 0.0-9.50 |
| Air Index Resolution | 0.01 |
| Excess Air Range | 0-850% |
| Stack Losses Range | 0.0-100.0% |
| Efficiency Range | 0.0-120.0% |
| Efficiency Resolution | 0.1% |
