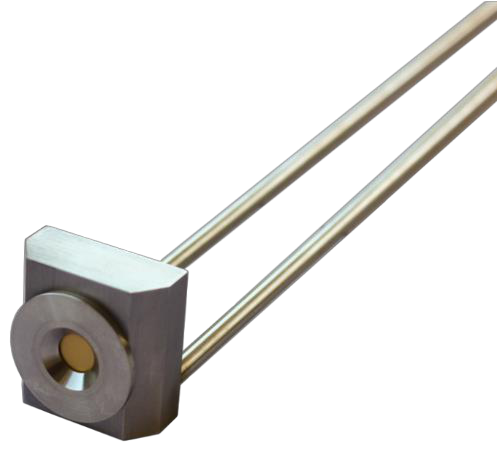

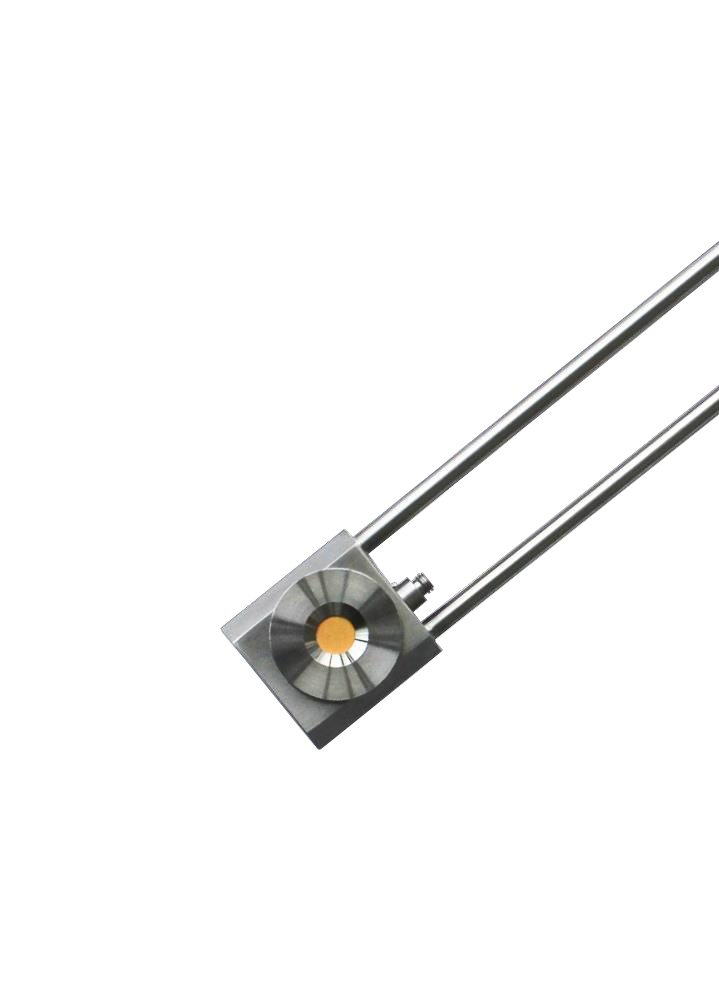

Economy Single Crystal Sensor
The Economy Single Crystal Sensor is designed for cost-effective and long-term use in quartz crystal microbalance (QCM) systems, providing high precision and reliability for thin film deposition processes.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum Ambient Temperature | 175°C |
| Maximum Heating Temperature | 400°C |
| Dimensions (Maximum Size, with Flange) | 3.25×7.06×3.15in(1.28×2.78×3.15in) |
| Dimensions (Maximum Size, without Flange) | 3.25×4.04×1.53in(1.28×1.59×0.60in) |
| Water Tube | 4.76mm(0.188in) |
| Front Face Mounting | 4×#4-40 screws |

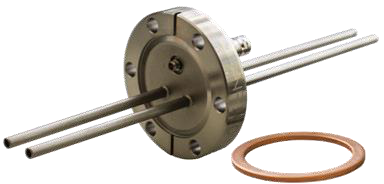

| Flange | CF40, 2.75in ConFlat |
| Cooling Water Flow Rate | 150-200ml/min, 30°C |
| Cooling Water Pressure | 70-80psi |
| Crystal | 13.97mm(0.550in) |
| Body and Support Material | 304 stainless steel |
| Spring and Electrical Contacts | Gold-plated |
| Water Tube Material | S-304 stainless steel |
| Connector (Microdot) | Teflon and stainless steel |
| Insulator | Teflon, >99% purity |
| Wire | Magnet wire |
