Front Load Single Sensor

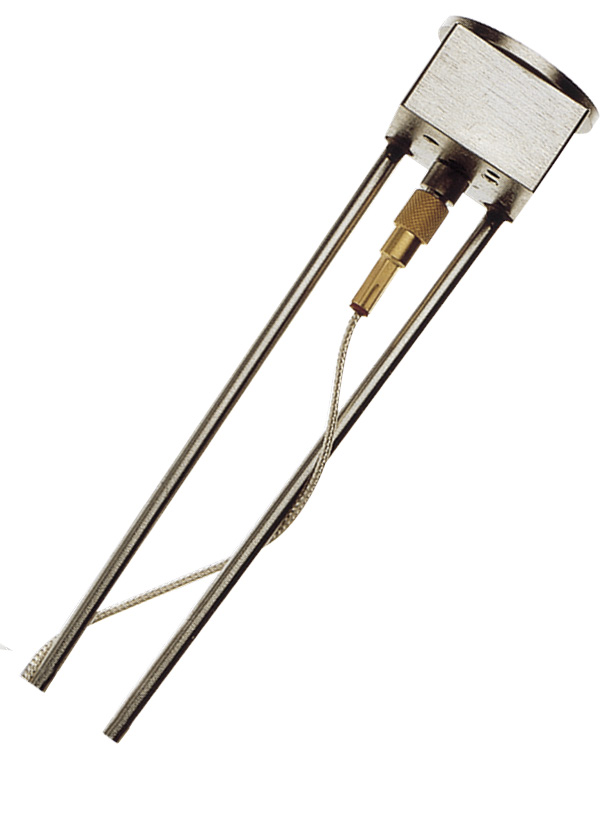

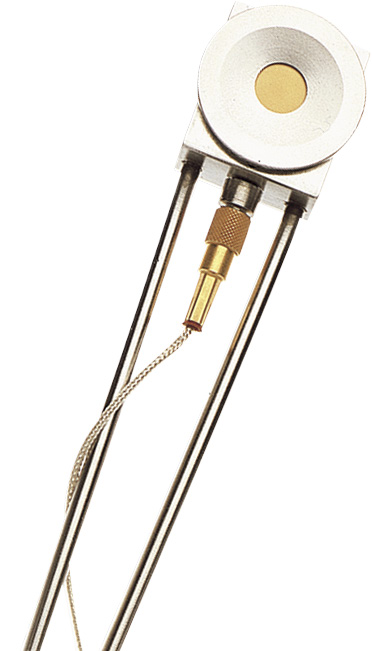

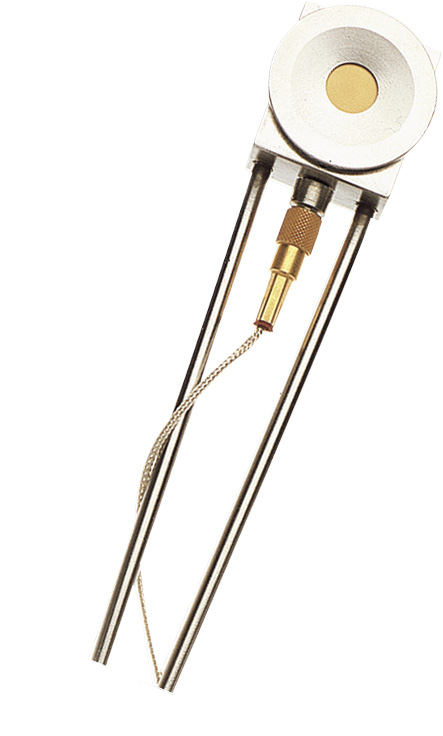

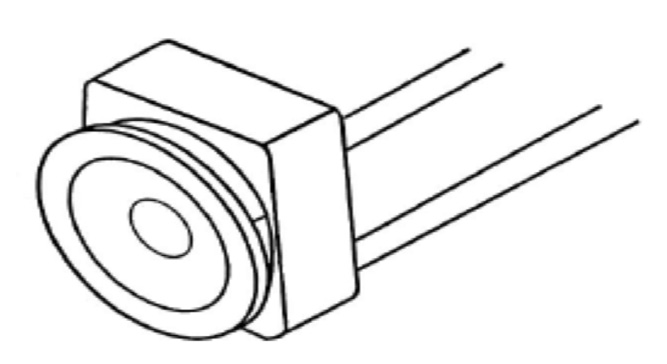

The INFICON Front Load Single Sensor is a reliable and durable crystal sensor designed for easy insertion of the crystal holder in applications with limited space for side insertion. It features a front load design, mechanical assembly for easy field replacement, and compatibility with various feedthrough configurations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Maximum bakeout temp with no water | 130°C |
| Maximum operating isothermal environment temperature with minimum water flow | 400°C |
| Size (maximum envelope without shutter) | 27mm x 61.47mm x 17.53mm (1.063in x 2.42in x 0.69in) |
| Water tube diameter | 3.175mm (1/8in) O.D. seamless stainless steel |
| Crystal exchange | Front loading; self-contained package for ease of exchange |
| Mounting | Two #4-40 tapped holes on the back of the sensor body |
| Feedthrough | Two pass water 4.8mm (3/16in) O.D. tubing with Microdot coax connector |
| Water flow rate | Minimum water flow 150-200cc/min, 30°C max (do not allow to freeze) |
| Water quality | Coolant should not contain chlorides as stress corrosion cracking may occur; extremely dirty water may result in loss of cooling capacity |
| Material - Body and holder | 304 type stainless steel |
| Material - Springs, electrical contacts | Au plated Be-Cu |
| Material - Water tubes | S-304, 3.175mm (0.125in) O.D. x 0.381mm (0.015in) wall thickness seamless stainless steel tubing |
| Material - Connector (Microdot) | Stainless steel |
| Material - Connector (Microdot) | Teflon and glass insulated |
| Material - Insulators | >99% Al2O3 |
| Material - Wire | Teflon insulated copper |
| Material - Braze | Vacuum process high temperature Ni-Cr alloy |
| Crystal Diameter | 13.97mm (0.550in) |
