Vacuum Wafer Handling Robot
This vacuum wafer handling robot is designed for precise and efficient wafer transportation in vacuum environments, ensuring high accuracy and reliability.
Save to Favorites
Overview

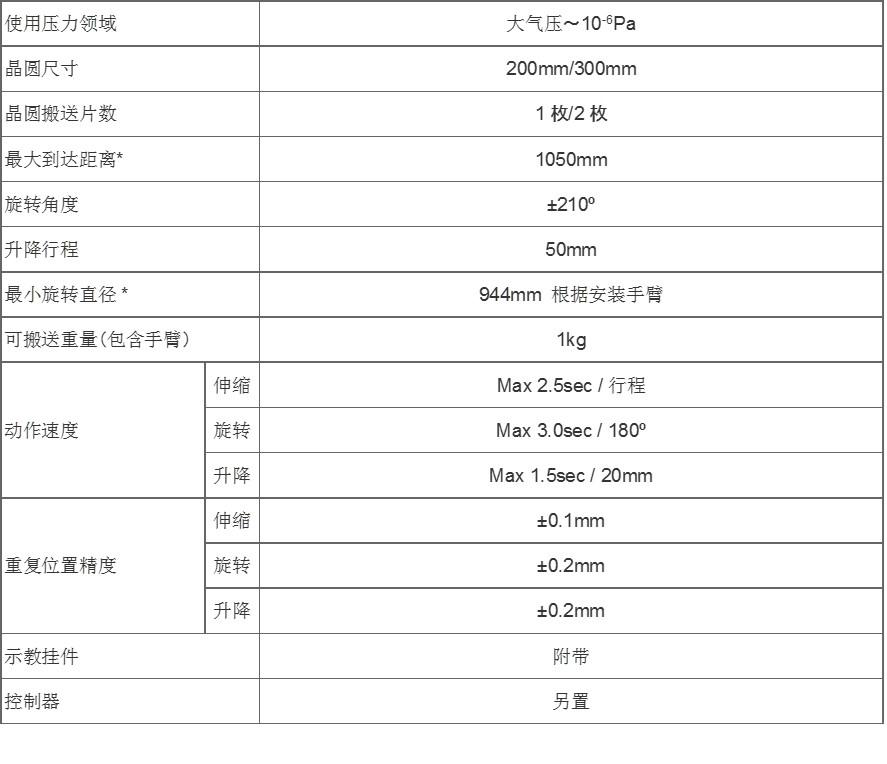

Specifications
| Parameter | Value |
|---|---|
| Pressure Range | 大气压~10^-6Pa |
| Wafer Size | 200mm/300mm |
| Number of Wafer Transported | 1片/2片 |
| Maximum Reach Distance | 1050mm |
| Rotation Angle | ±210° |
| Lifting Stroke | 50mm |
| Minimum Rotation Diameter | 944mm 根据安装手臂 |
| Transportable Weight (Including Arm) | 1kg |
| Operation Speed - Extension | Max 2.5sec/行程 |
| Operation Speed - Rotation | Max 3.0sec/180° |
| Operation Speed - Lifting | Max 1.5sec/20mm |
| Repeat Positioning Accuracy - Extension | ±0.1mm |
| Repeat Positioning Accuracy - Rotation | ±0.2mm |
| Repeat Positioning Accuracy - Lifting | ±0.2mm |
| Teaching Pendant | 附带 |
| Controller | 另置 |
