RF Power Supply
The RF Power Supply series offers high-performance solutions for various industrial and scientific applications, providing reliable and efficient power delivery.
Save to Favorites
Overview

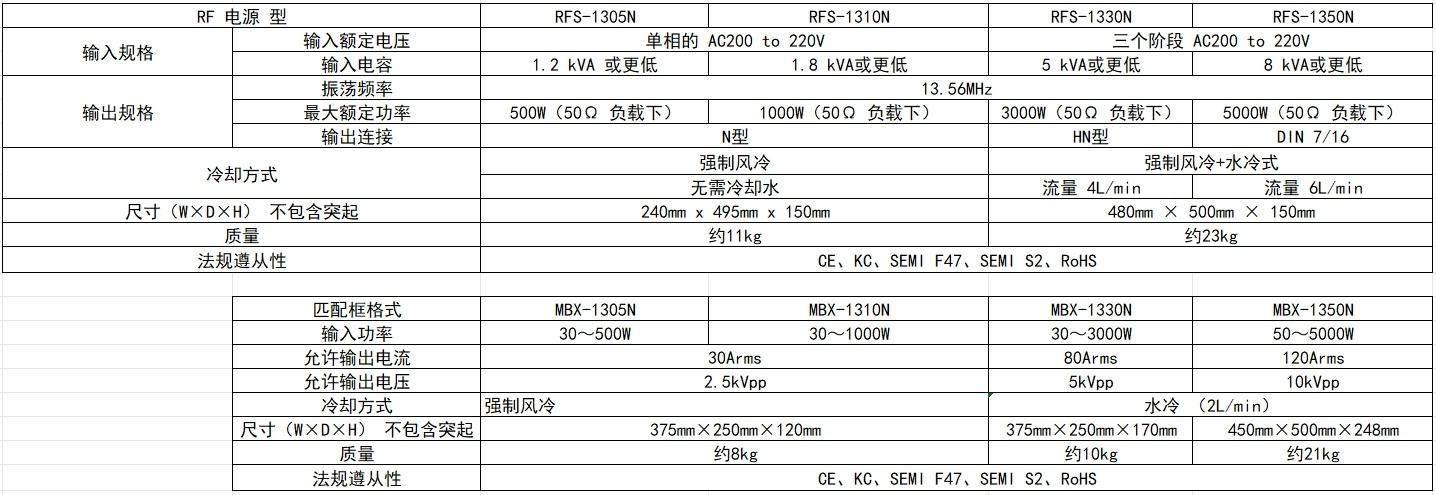

Specifications
| Parameter | Value |
|---|---|
| Input Rated Voltage RFS-1305N | 单相的AC200 to 220V |
| Input Capacity RFS-1305N | 1.2kVA或更低 |
| Oscillation Frequency RFS-1305N | 13.56MHz |
| Maximum Rated Power RFS-1305N | 500W (50Ω负载下) |
| Output Connection RFS-1305N | N型 |
| Cooling Method RFS-1305N | 强制风冷，None需冷却水 |
| Dimensions (WxDxH) Excluding Protrusions RFS-1305N | 240mmx495mmx150mm |
| Weight RFS-1305N | 约11kg |
| Regulatory Compliance RFS-1305N | CE, KC, SEMI F47, SEMI S2, RoHS |
| Input Rated Voltage RFS-1310N | 单相的AC200 to 220V |
| Input Capacity RFS-1310N | 1.8kVA或更低 |
| Oscillation Frequency RFS-1310N | 13.56MHz |
| Maximum Rated Power RFS-1310N | 1000W (50Ω负载下) |
| Output Connection RFS-1310N | N型 |
| Cooling Method RFS-1310N | 强制风冷，None需冷却水 |
| Dimensions (WxDxH) Excluding Protrusions RFS-1310N | 240mmx495mmx150mm |
| Weight RFS-1310N | 约11kg |
| Regulatory Compliance RFS-1310N | CE, KC, SEMI F47, SEMI S2, RoHS |
| Input Rated Voltage RFS-1330N | 三相的AC200 to 220V |
| Input Capacity RFS-1330N | 5kVA或更低 |
| Oscillation Frequency RFS-1330N | 13.56MHz |
| Maximum Rated Power RFS-1330N | 3000W (50Ω负载下) |
| Output Connection RFS-1330N | HN型 |
| Cooling Method RFS-1330N | 强制风冷+水冷式，流量4L/min |
| Dimensions (WxDxH) Excluding Protrusions RFS-1330N | 480mmx500mmx150mm |
| Weight RFS-1330N | 约23kg |
| Regulatory Compliance RFS-1330N | CE, KC, SEMI F47, SEMI S2, RoHS |
| Input Rated Voltage RFS-1350N | 三相的AC200 to 220V |
| Input Capacity RFS-1350N | 8kVA或更低 |
| Oscillation Frequency RFS-1350N | 13.56MHz |
| Maximum Rated Power RFS-1350N | 5000W (50Ω负载下) |
| Output Connection RFS-1350N | DIN 7/16 |
| Cooling Method RFS-1350N | 强制风冷+水冷式，流量6L/min |
| Dimensions (WxDxH) Excluding Protrusions RFS-1350N | 480mmx500mmx150mm |
| Weight RFS-1350N | 约23kg |
| Regulatory Compliance RFS-1350N | CE, KC, SEMI F47, SEMI S2, RoHS |
| Matching Frame Format MBX-1305 | MBX-1305 |
| Input Power MBX-1305 | 30~500W |
| Permissible Output Current MBX-1305 | 30Arms |
| Permissible Output Voltage MBX-1305 | 2.5kVpp |
| Cooling Method MBX-1305 | 强制风冷 |
| Dimensions (WxDxH) Excluding Protrusions MBX-1305 | 375mmx250mmx120mm |
| Weight MBX-1305 | 约8kg |
| Regulatory Compliance MBX-1305 | CE, KC, SEMI F47, SEMI S2, RoHS |
| Matching Frame Format MBX-1310 | MBX-1310 |
| Input Power MBX-1310 | 30~1000W |
| Permissible Output Current MBX-1310 | 30Arms |
| Permissible Output Voltage MBX-1310 | 2.5kVpp |
| Cooling Method MBX-1310 | 强制风冷 |
| Dimensions (WxDxH) Excluding Protrusions MBX-1310 | 375mmx250mmx120mm |
| Weight MBX-1310 | 约8kg |
| Regulatory Compliance MBX-1310 | CE, KC, SEMI F47, SEMI S2, RoHS |
| Matching Frame Format MBX-1330 | MBX-1330 |
| Input Power MBX-1330 | 30~3000W |
| Permissible Output Current MBX-1330 | 80Arms |
| Permissible Output Voltage MBX-1330 | 5kVpp |
| Cooling Method MBX-1330 | 水冷(2L/min) |
| Dimensions (WxDxH) Excluding Protrusions MBX-1330 | 375mmx250mmx170mm |
| Weight MBX-1330 | 约10kg |
| Regulatory Compliance MBX-1330 | CE, KC, SEMI F47, SEMI S2, RoHS |
| Matching Frame Format MBX-1350 | MBX-1350 |
| Input Power MBX-1350 | 50~5000W |
| Permissible Output Current MBX-1350 | 120Arms |
| Permissible Output Voltage MBX-1350 | 10kVpp |
| Cooling Method MBX-1350 | 水冷(2L/min) |
| Dimensions (WxDxH) Excluding Protrusions MBX-1350 | 450mmx500mmx248mm |
| Weight MBX-1350 | 约21kg |
| Regulatory Compliance MBX-1350 | CE, KC, SEMI F47, SEMI S2, RoHS |
