HPS Series High Voltage Power Supply
The HPS Series High Voltage Power Supply is designed for industrial applications requiring high voltage output with precise control and efficient cooling.
Save to Favorites
Overview

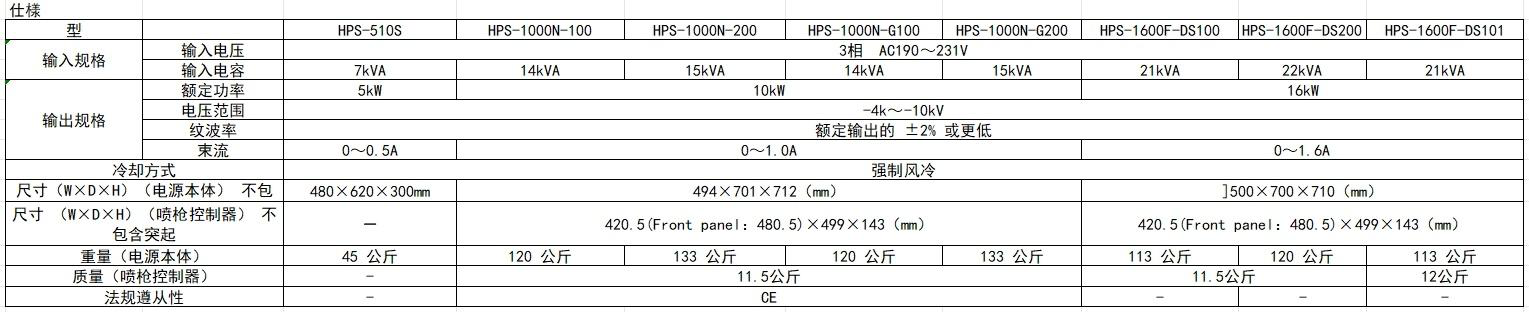

Specifications
| Parameter | Value |
|---|---|
| Model | HPS-510S, HPS-1000N-100, HPS-1000N-200, HPS-1000N-G100, HPS-1000N-G200, HPS-1600F-DS100, HPS-1600F-DS200, HPS-1600F-DS101 |
| Input Voltage | 3相 AC190~231V |
| Input Capacity | 7kVA, 14kVA, 15kVA, 21kVA, 22kVA |
| Rated Power | 5kW, 10kW, 16kW |
| Voltage Range | ~4k~10kV |
| Ripple | 额定输出的±2%或更低 |
| Current | 0~0.5A, 0~1.0A, 0~1.6A |
| Cooling Method | 强制风冷 |
| Dimensions (Power Supply Unit) | 480×620×300mm, 494×701×712mm, 500×700×710mm |
| Dimensions (Spray Gun Controller) | 420.5 (Front panel: 480.5) × 499 × 143mm |
| Weight (Power Supply Unit) | 45kg, 120kg, 133kg, 113kg |
| Weight (Spray Gun Controller) | 11.5kg, 12kg |
| Regulatory Compliance | CE |
