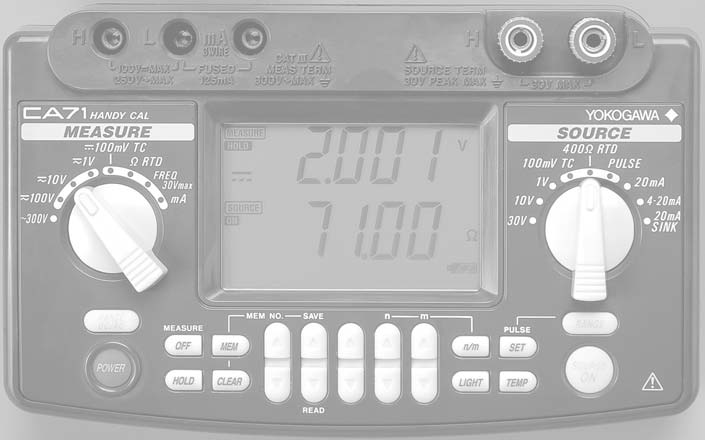

CA51/CA71 Handy Calibrators

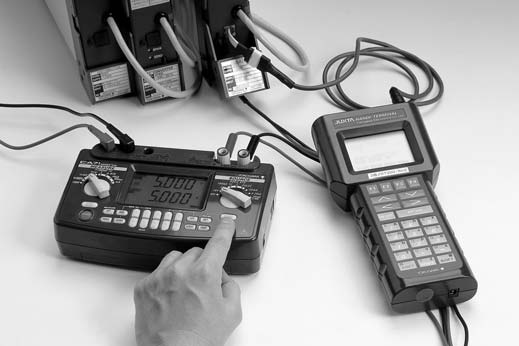

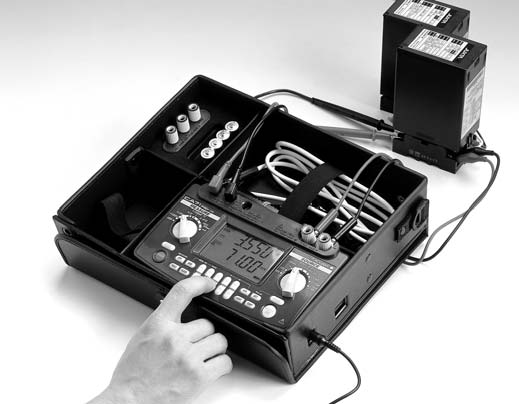

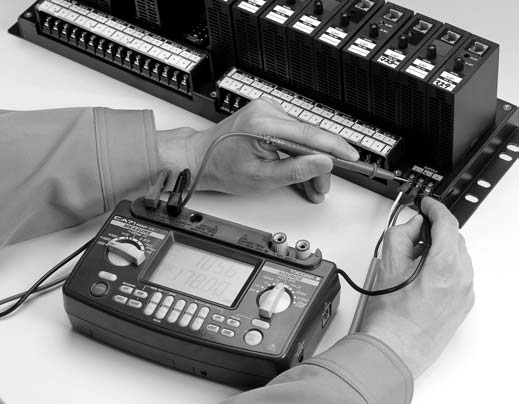

The CA51/CA71 Handy Calibrators are compact, lightweight, multifunctional devices designed for calibration and measurement tasks. They can simultaneously source and measure voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, and pulse signals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Signal sourcing unit range and accuracy DC电压[$$]DC Voltage 10mV | ±0.02%±2digits |
| DC Voltage 100mV | ±0.02%±2digits |
| DC Voltage 1V | ±0.02%±2digits |
| DC Voltage 10V | ±0.02%±2digits |
| DC Voltage 100V | ±0.02%±2digits |
| DC Current 20mA | ±0.02%±2digits |
| DC Current 100mA | ±0.02%±2digits |
| TC Temperature K | 200-1372°C ±1°C |
| TC Temperature T | 200-400°C ±1°C |
| TC Temperature E | 200-1000°C ±1°C |
| TC Temperature J | 200-1200°C ±1°C |
| TC Temperature R | 200-1600°C ±1°C |
| TC Temperature S | 200-1600°C ±1°C |
| TC Temperature B | 600-1800°C ±1°C |
| RTD Temperature Pt100 | 200-850°C ±0.1°C |
| Frequency 500Hz-10kHz | ±0.02%±2digits |
| Frequency 10kHz-100kHz | ±0.02%±2digits |
| Pulse 0.01-99.99CPM | ±0.02%±2digits |
| Measurement unit range and accuracy DC电压[$$]DC Voltage 10mV | ±0.02%±2digits |
| Resistance 10Ω | ±0.02%±2digits |
| Resistance 100Ω | ±0.02%±2digits |
| Resistance 1kΩ | ±0.02%±2digits |
| Resistance 10kΩ | ±0.02%±2digits |
| Resistance 100kΩ | ±0.02%±2digits |
| AC Voltage 10V | ±0.5%±5digits |
| AC Voltage 100V | ±0.5%±5digits |
| Measurement unit temperature range and accuracy TC温度[$$]TC Temperature K | 200-1372°C ±1°C |
