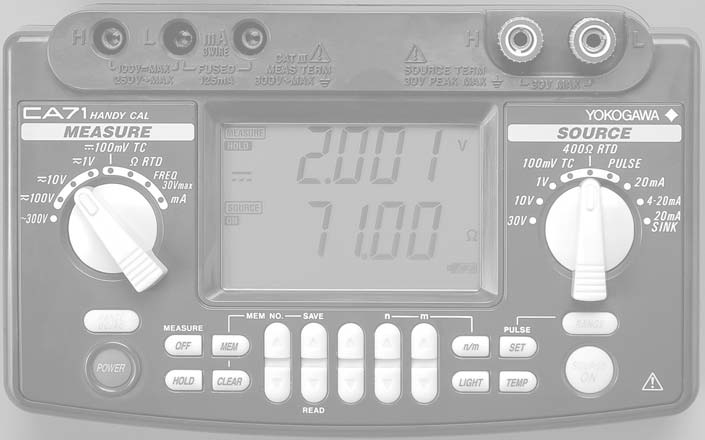

CA51/CA71 Handy Calibrator

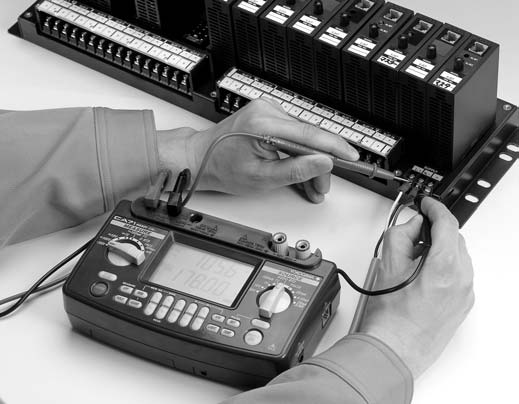

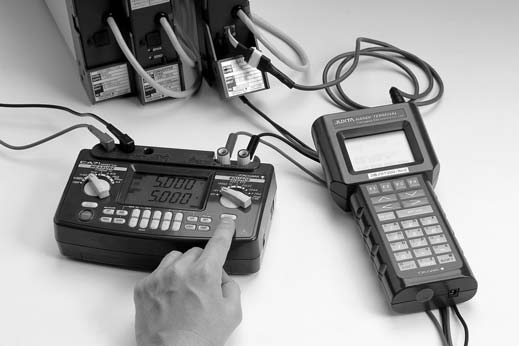

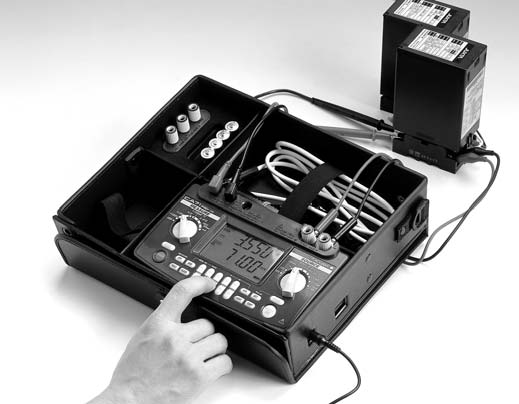

The CA51/CA71 Handy Calibrator is a compact, lightweight, multifunctional device designed for calibration and measurement tasks. It can simultaneously source and measure voltage, current, resistance, thermocouple (TC), resistance temperature detector (RTD), frequency, and pulse signals.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Signal sourcing unit range and accuracy DC voltage | 0-110V ±0.05%±1digit |
| Signal Sourcing Unit Range and Accuracy DC current | 0-20mA ±0.05%±1digit |
| Signal Sourcing Unit Range and Accuracy Resistance | 0-400Ω ±0.1%±1digit |
| Signal Sourcing Unit Range and Accuracy Frequency | 500Hz-5000Hz ±0.1%±1digit |
| Signal Sourcing Unit Range and Accuracy Pulse | 0.01Hz-10kHz ±0.1%±1digit |
| Measurement unit range and accuracy DC voltage | 0-110V ±0.05%±1digit |
| Measurement Unit Range and Accuracy DC current | 0-20mA ±0.05%±1digit |
| Measurement Unit Range and Accuracy Resistance | 0-400Ω ±0.1%±1digit |
| Measurement Unit Range and Accuracy AC voltage | 0-110V ±0.05%±1digit |
| Measurement Unit Range and Accuracy Frequency | 500Hz-5000Hz ±0.1%±1digit |
| Measurement Unit Range and Accuracy Pulse | 0.01Hz-10kHz ±0.1%±1digit |
| Measurement Unit Range and Accuracy RTD | 200Ω-2000Ω ±0.1%±1digit |
| Measurement Unit Range and Accuracy TC | K, T, N, R, S, B ±1°C |
