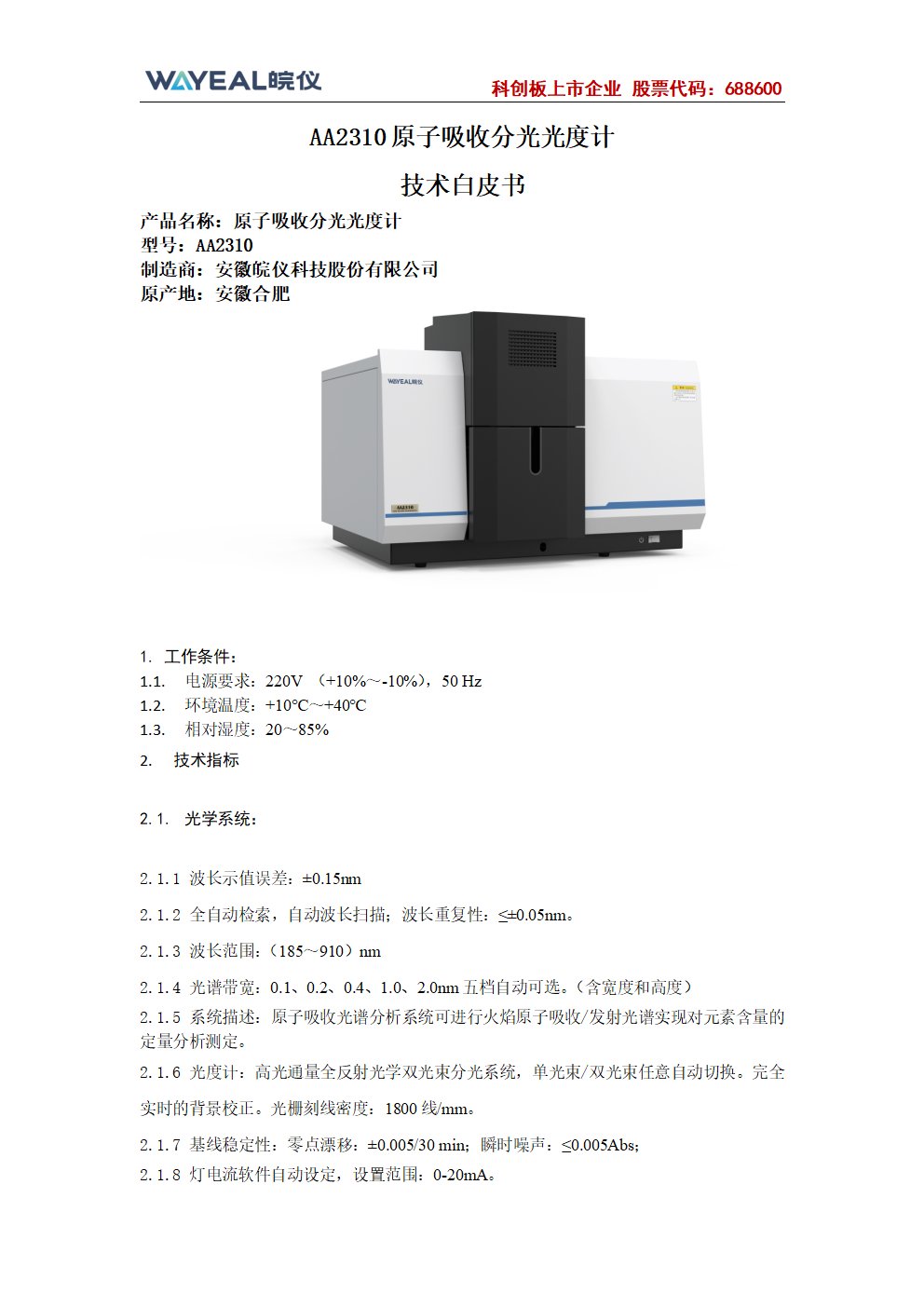

AA2310 Atomic Absorption Spectrophotometer
The AA2310 Atomic Absorption Spectrophotometer is designed for precise and efficient elemental analysis, offering advanced optical and flame atomization systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power Requirements | 220V(+10%~-10%) 50Hz |
| Ambient Temperature | 10°C~40°C |
| Relative Humidity | 20%~85% |
| Wavelength Accuracy | ±0.15nm |
| Automatic Wavelength Scanning | ≤0.05nm |
| Wavelength Range | 185~910nm |
| Spectral Bandwidth | 0.1, 0.2, 0.4, 1.0, 2.0nm |
| Optical System | Double beam total reflection system with single/double beam switch |
| Light Source Stability | 1800±20nm |

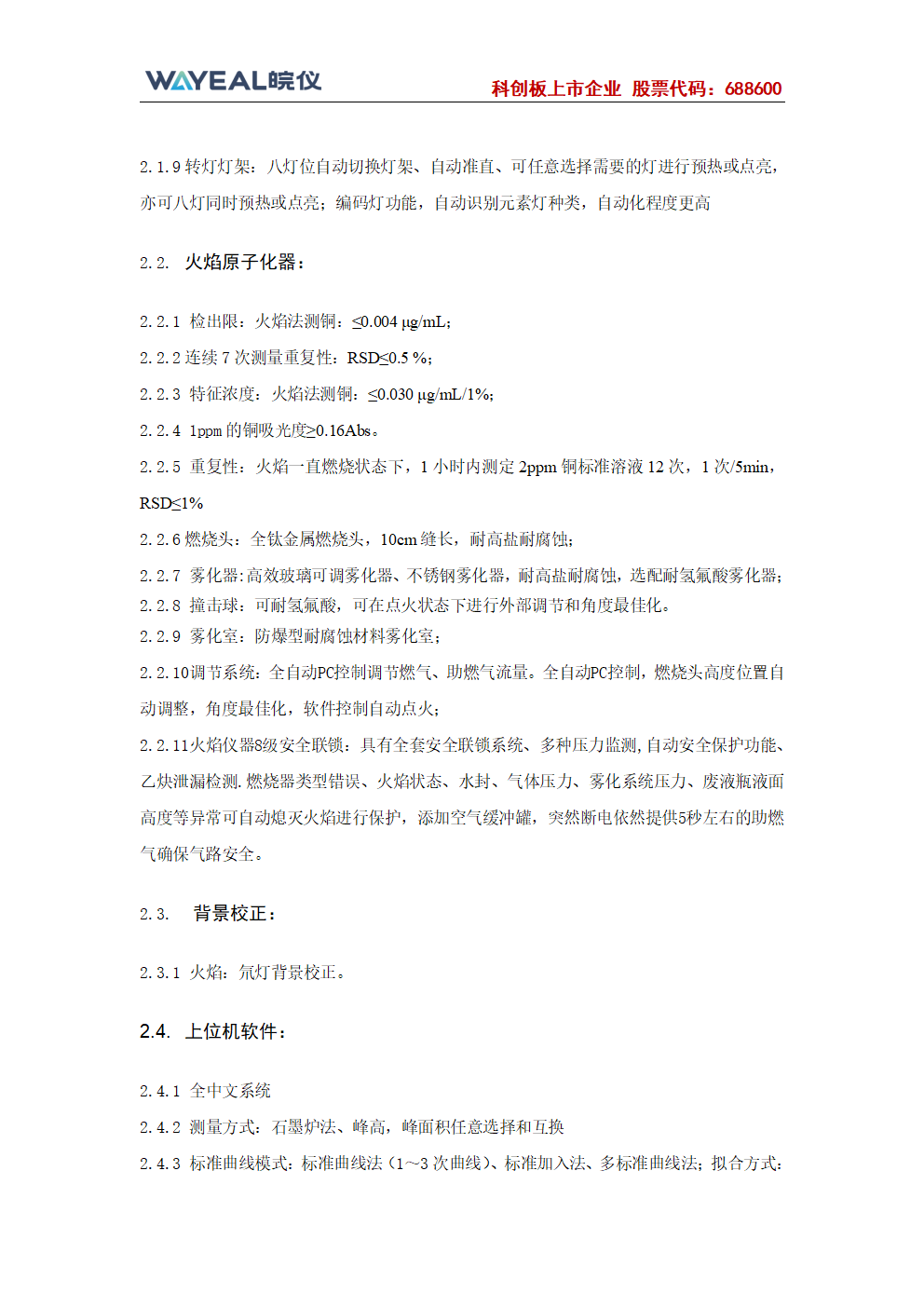

| Detection Limit | ≤0.004μg/mL |
| Continuous Measurement | RSD≤0.5% |
| Characteristic Concentration | ≤0.030μg/mL/1% |
| Absorbance for ppm | ≤0.16Abs |
| Flame Burner | 10cm corrosion-resistant material |
| Background Correction | Deuterium lamp background correction |

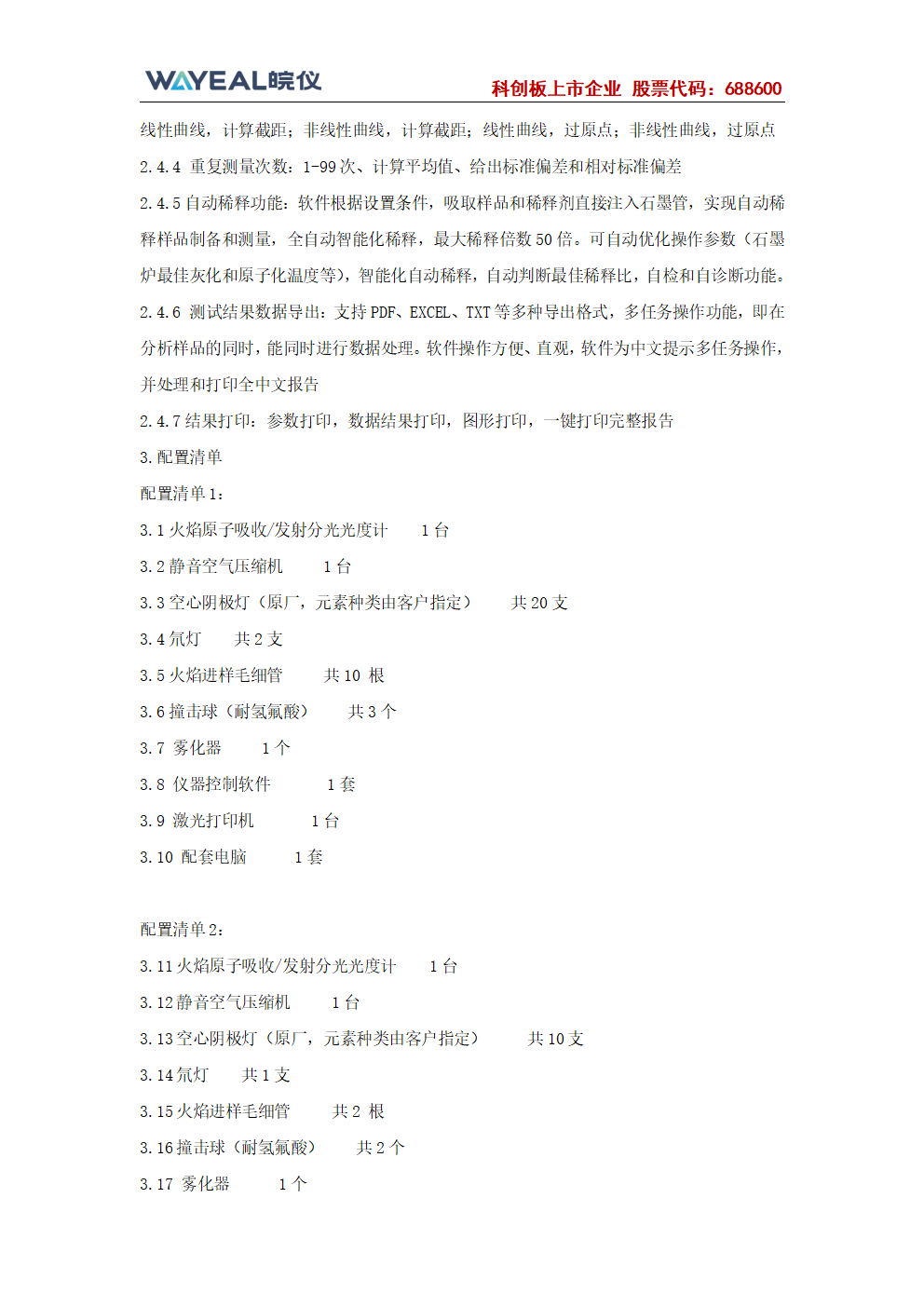

| Host Software | Supports PDF, EXCEL, TXT export and multi-curve fitting |
| Automatic Lamp Holder | Automatic positioning and preheating |

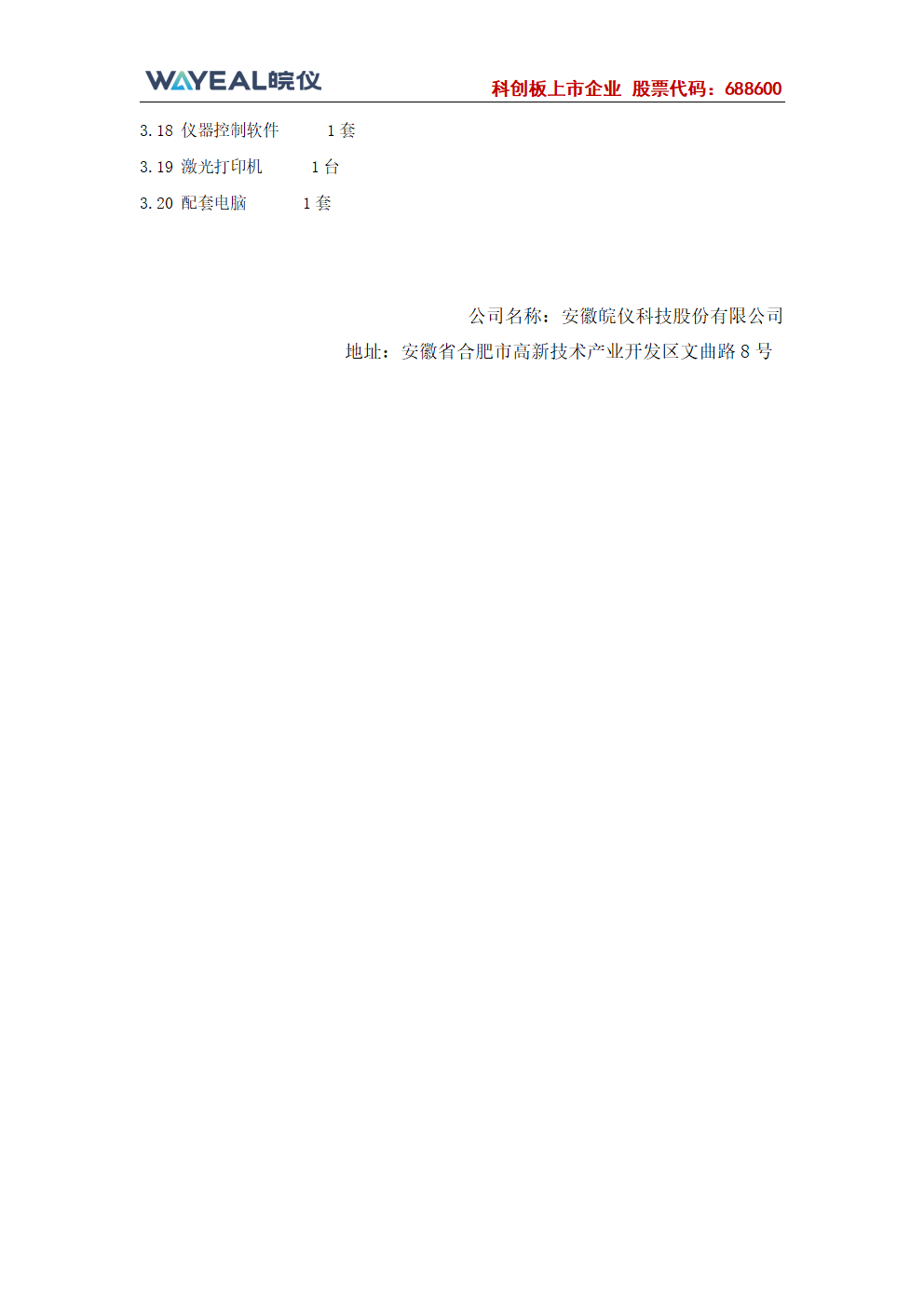

| Instrument Control Software | 1 set |
| Laser Printer | 1 unit |
| Supporting Computer | 1 set |
Applications
Key Features
Datasheet
