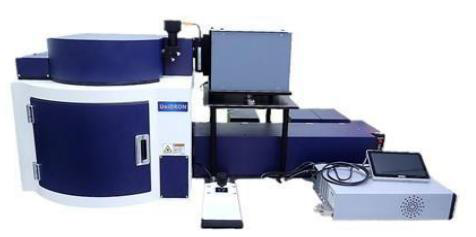

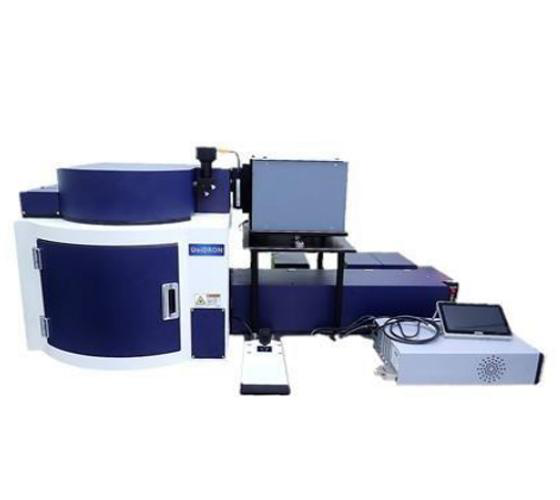

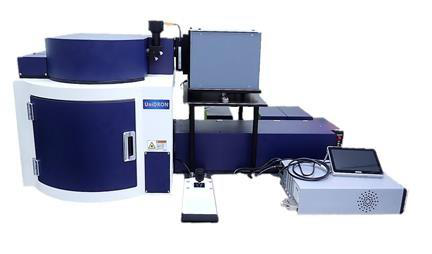

UniDRON
UniDRON is an integrated Raman spectroscopy system designed for precise material analysis, featuring multi-wavelength selection, high-resolution imaging, and automated optical switching.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Wavelength Selection | 266/325/355/457/473/514/532/633/670/785/808/830/1064/1350nm |
| Microscope & Objective Lens Selection | 10x, 20x, 50x, 100x |
| Laser Excitation Fiberless System | Available |
| 11-Level Power Adjustment | 0.01%-100% |
| High-Resolution Imaging and Spectroscopy | XY: 50μm, Z: 10nm |
| High-Sensitivity Detector | 2000x256 pixels, TEC cooled to -60°C |
| Automatic Spectral Switching | Available |
| Raman Shift Range | 50cm⁻¹ to 8000cm⁻¹ |
| Spectrograph | 193nm/328nm/350nm/500nm/750nm/1000nm |
| XY Mapping | 50nm step and Z depth scanning with 10nm step |
